Home >> Genesis >> 2021 >> G70 2.0T, AWD >> Repair and Diagnosis >> Electrical >> Horns >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

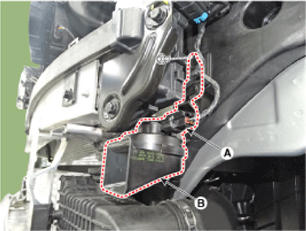

  2. Disconnect the connector (A) and then remove the low-pitch horn after loosening the mounting bolt.
    G14177657Courtesy of HYUNDAI MOTOR AMERICA

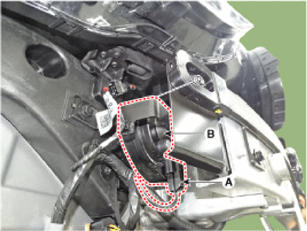

  3. Disconnect the connector (A) and then remove the high-pitch horn after loosening the mounting bolt.
    G14177658Courtesy of HYUNDAI MOTOR AMERICA
