Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the alternator assembly.

    (Refer to Engine Electrical System - "ALTERNATOR ")

  3. Remove the intercooler outlet hose & pipe.

    (Refer to Engine Mechanical System - "INTERCOOLER ")

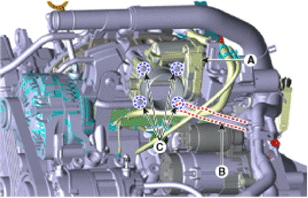

  4. Disconnect the ETC module connector (A).
  5. Disconnect the coolant hose (B).
  6. Remove the ETC module from the engine after loosening the installation bolt (C).

    Electronic throttle body Installation bolt:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14175570Courtesy of HYUNDAI MOTOR AMERICA
