Home >> Genesis >> 2021 >> G70 2.0T, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Purge Control Solenoid Valve (PCSV) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the engine cover.

    (Refer to Engine Mechanical System - "ENGINE COVER ")

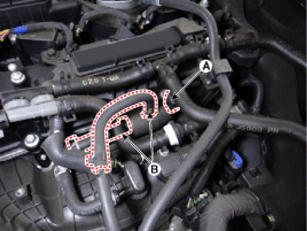

  3. Disconnect the purge control solenoid valve connector (A).
  4. Disconnect the vapor hoses (B) from the purge control solenoid valve.
    G14175658Courtesy of HYUNDAI MOTOR AMERICA

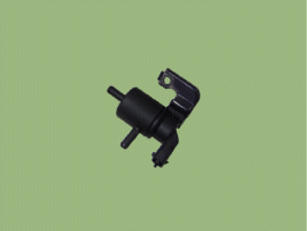

    G14175659Courtesy of HYUNDAI MOTOR AMERICA
