Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the intake manifold.

    (Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

  4. Remove the delivery pipe foam (A).
    G14175619Courtesy of HYUNDAI MOTOR AMERICA

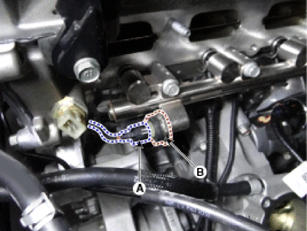

  5. Disconnect the rail pressure sensor connector (A), and then remove the sensor (B) from the delivery pipe.
    G14175620Courtesy of HYUNDAI MOTOR AMERICA
