Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the intake manifold.

    (Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

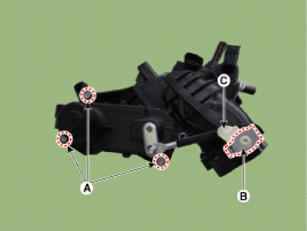

  3. Remove the variable charge motion actuator mounting bolts (A).
  4. Remove VCMA rod clip (B) and connection link between flap (C) using screwdriver.
    G14175668Courtesy of HYUNDAI MOTOR AMERICA
