Repair Procedures: Removal

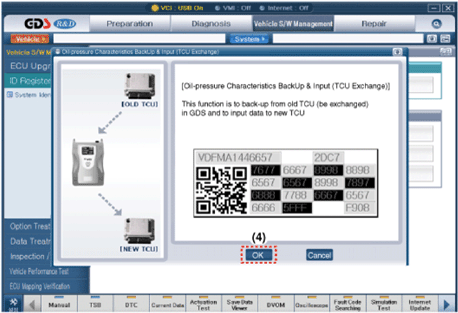

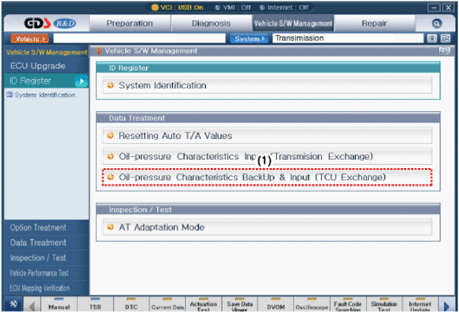

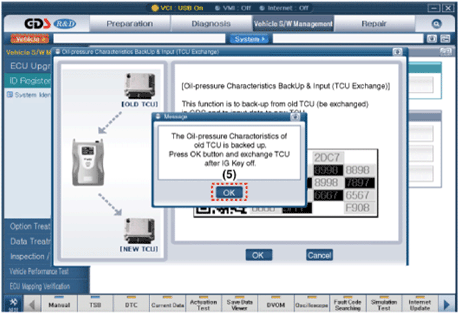

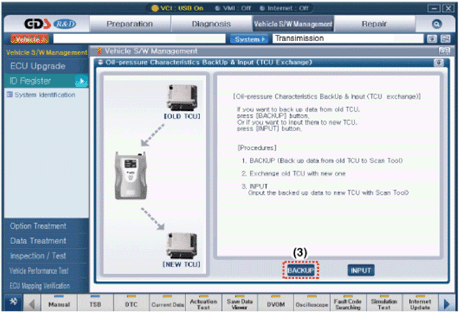

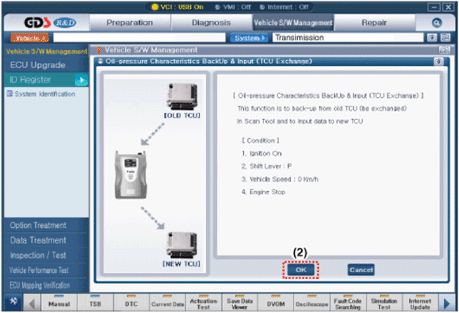

  1. Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.
    G14179828Courtesy of HYUNDAI MOTOR AMERICA
    G14179829Courtesy of HYUNDAI MOTOR AMERICA
    G14179830Courtesy of HYUNDAI MOTOR AMERICA
    G14179831Courtesy of HYUNDAI MOTOR AMERICA
    G14179832Courtesy of HYUNDAI MOTOR AMERICA
    G14179833Courtesy of HYUNDAI MOTOR AMERICA
  2. Disconnect the TCM connector (A).
    G14179834Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the TCM (A) after loosening the nuts.
    G14179835Courtesy of HYUNDAI MOTOR AMERICA
