Repair Procedures: Inspection

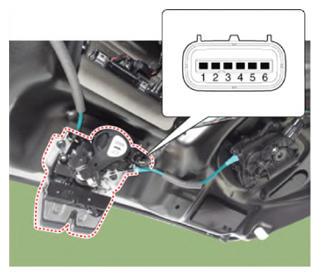

- Disconnect the power latch and cinching connectors.
- Connect the power latch terminals directly to battery voltage (12V) and check that the motor operates smoothly.

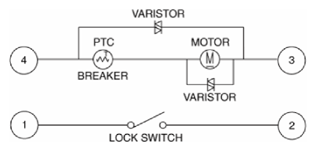

[Latch & Actuator]
Terminal LOCK → UNLOCK UNLOCK LOCK → 4 + X 3 - 1 & 2 OFF → ON ON → OFF [Cinching & Actuator]
Terminal OPEN OPEN → 1ST LOCK 1ST LOCK → 2ND LOCK 2ND LOCK → RETURN RETURN POSITION 2 X - - + X 1 + + - 4 & 3 ON ON ON OFF OFF 4 & 5 ON ON → OFF OFF OFF OFF 4 & 6 ON ON ON → OFF OFF OFF 7 & B ON ON → OFF OFF → ON → OFF OFF OFF
