Repair Procedures: Inspection

  1. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

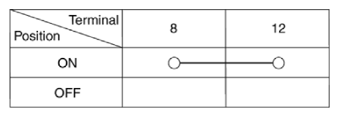

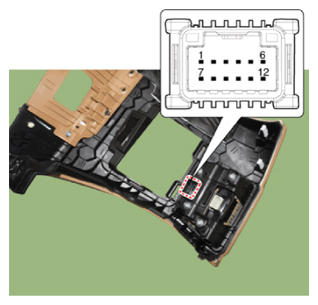

  2. Check for continuity between terminals of the power trunk switch.
    G15554774Courtesy of HYUNDAI MOTOR AMERICA
    G15554775Courtesy of HYUNDAI MOTOR AMERICA
