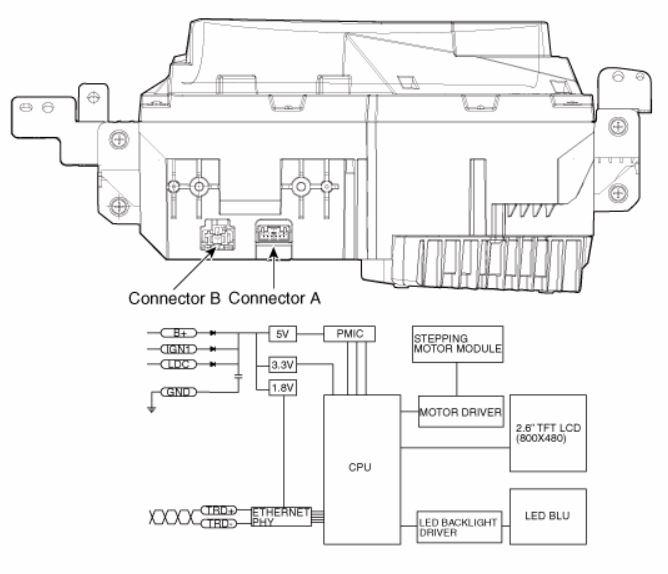

Components And Components Location: Component

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Ground
	2	-
	3	-
	4	LDC (B+) input
	5	ION 1
	6	Battery (*)

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Ethernet (+)
	2	Ethernet (-)
