Home >> Genesis >> 2021 >> G80 2.5T Advanced, AWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 2.5L >> Fuel Pump Control Module (FPCM) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the luggage side trim [LH]. (Refer to Body - "LUGGAGE SIDE TRIM ")

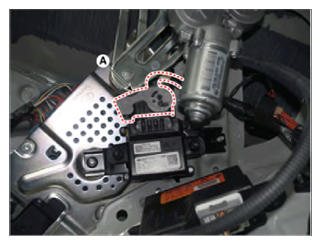

  3. Disconnect the fuel pump control module connector (A).
    G15547557Courtesy of HYUNDAI MOTOR AMERICA

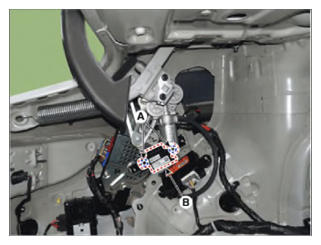

  4. After loosening the mounting nuts (A), then remove the fuel pump control module (B).

    Tightening torque:

    3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

    G15547558Courtesy of HYUNDAI MOTOR AMERICA
