Rear wheel alignment: Toe

Courtesy of HYUNDAI MOTOR AMERICA

B - A > 0: Toe in (+)

B - A < 0: Toe out (-)

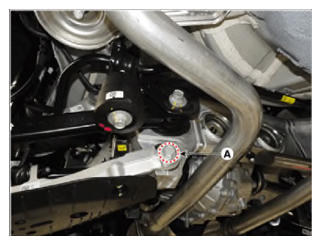

Adjust rear camber by turning the rear lower arm cam bolt (A) clockwise or counter clockwise. Camber adjustment should be made by turning the right and left cam bolt by the same amount.

Camber: -1.5°±0.5°

Cam bolt	Direction of rotation	Camber
Left side (Driver side)	clockwise	Decrease (-)
Left side (Driver side)	counterclockwise	Increase (+)
Right side (Passenger side)	clockwise	Increase (+)
Right side (Passenger side)	counterclockwise	Decrease (-)

Information

One needle turn (adjusting one side only): about 0.19°

Courtesy of HYUNDAI MOTOR AMERICA
