Home >> Genesis >> 2021 >> G80 2.5T Advanced, RWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Motor >> Components And Components Location >> Components

Components And Components Location: Components

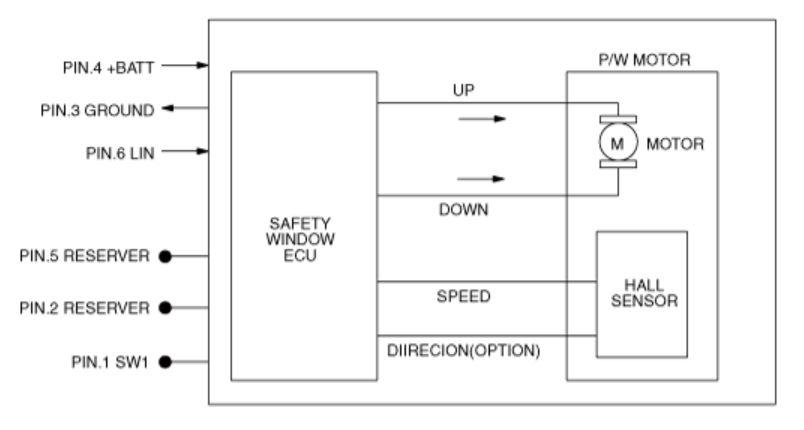

G15554705Courtesy of HYUNDAI MOTOR AMERICA
G14932220Courtesy of HYUNDAI MOTOR AMERICA

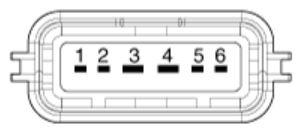

Connector A
G14932219Courtesy of HYUNDAI MOTOR AMERICA
Pin Descriptor
1 Switch 1
2 -
3 Ground
4 Battery (+)
5 -
6 LIN
