Home >> Genesis >> 2021 >> G90 3.3T Premium, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> Electronic Throttle Control System (ETC) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

    (Refer to Engine Mechanical System - "REPAIR PROCEDURES ")

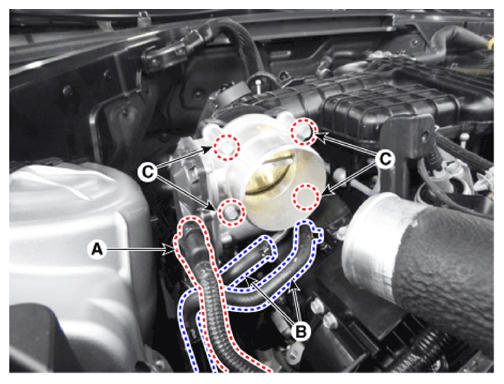

  2. Disconnect the ETC module connector (A).
  3. Disconnect the coolant hose (B).
  4. Remove the ETC module from the engine after loosening the installation bolt (C).
G14233086Courtesy of HYUNDAI MOTOR AMERICA
