Repair Procedures: Removal

1. Remove the ignition coil.

   (Refer to Ignition System - "IGNITION COIL ")

2. Using a spark plug wrench, remove the spark plug (A).
   NOTE:

   • Be careful of foreign materials not to enter the spark plug holes.

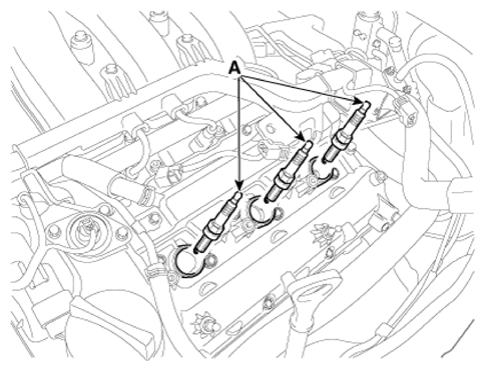

[Bank 1]

Courtesy of HYUNDAI MOTOR AMERICA

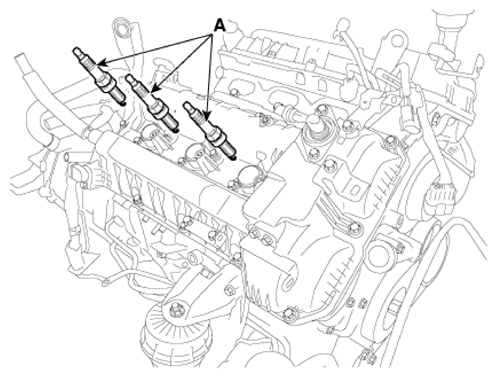

[Bank 2]

Courtesy of HYUNDAI MOTOR AMERICA
