Trunk Open Switch

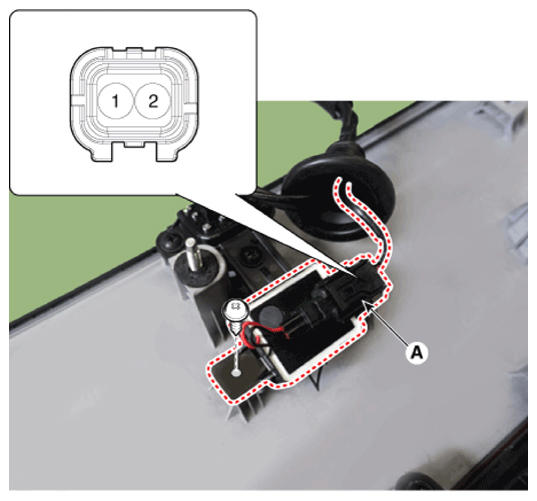

  1. Check for continuity between the trunk switch connector.
    G14235886Courtesy of HYUNDAI MOTOR AMERICA

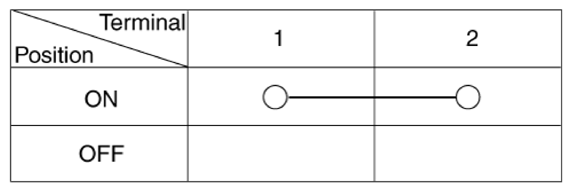

  2. If continuity is not specified, inspect the switch
G14235887Courtesy of HYUNDAI MOTOR AMERICA
