Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guide.

    (Refer to Body - "FRONT WHEEL GUARD ")

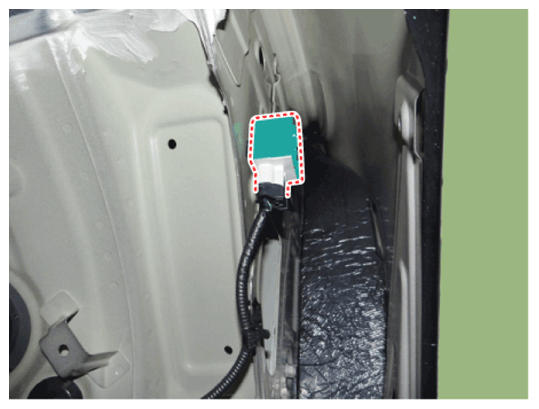

  3. Remove the buzzer (A) after disconnecting the connector.
G14235879Courtesy of HYUNDAI MOTOR AMERICA
