Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose.

    (Refer to Engine Mechanical System - "Repair Procedures ")

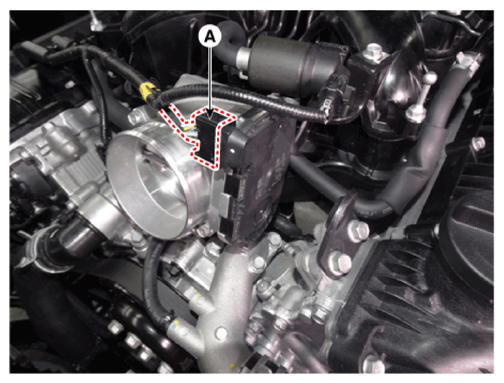

  3. Disconnect the ETC module connector (A).
  4. Disconnect the coolant hoses (B).
    G14237057Courtesy of HYUNDAI MOTOR AMERICA

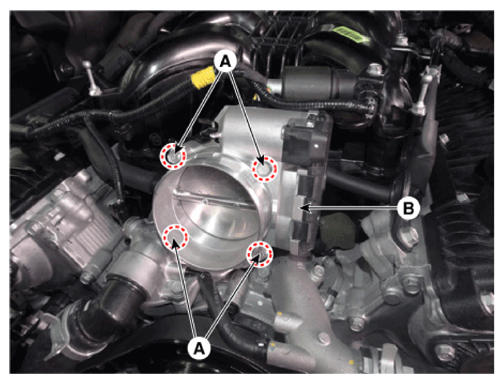

  5. Remove the installation bolts (A), and then remove the ETC module (B) from the engine.
G14237058Courtesy of HYUNDAI MOTOR AMERICA
