Repair Procedures: Disassembly

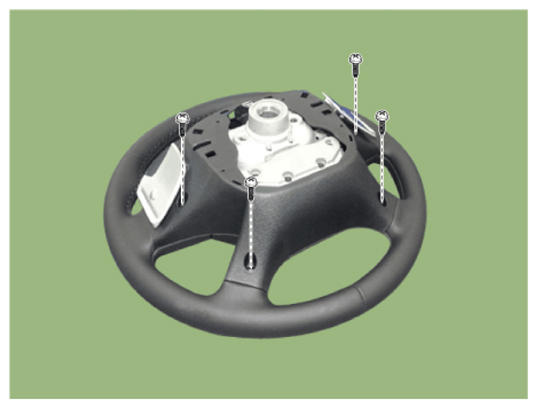

  1. Remove the screw and then separate the lower cover.
    G14210093Courtesy of HYUNDAI MOTOR AMERICA

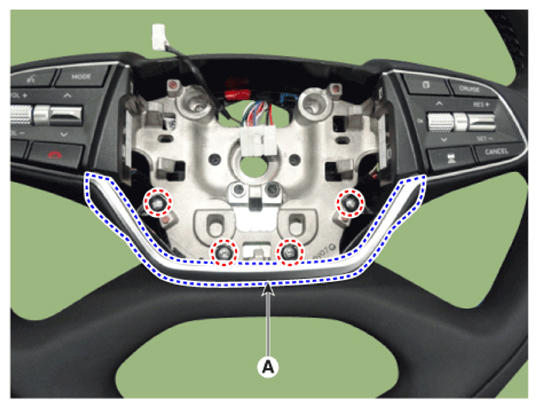

  2. Remove the screw and then separate the upper cover (A).
    G14210094Courtesy of HYUNDAI MOTOR AMERICA

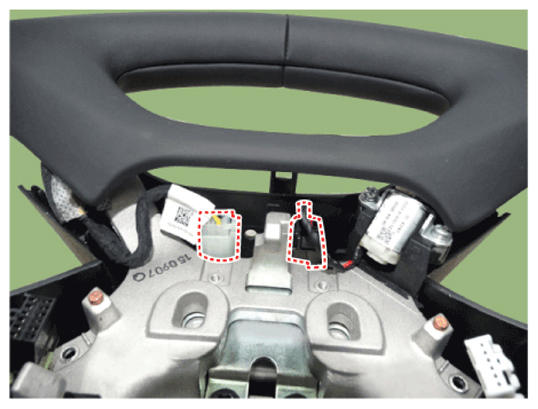

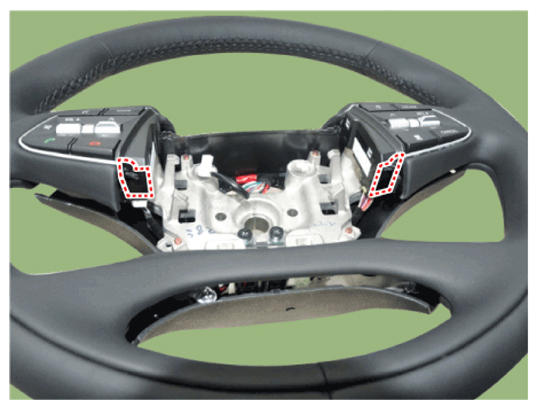

  3. Disconnect the steering wheel connector.
    G14210095Courtesy of HYUNDAI MOTOR AMERICA
    G14210096Courtesy of HYUNDAI MOTOR AMERICA

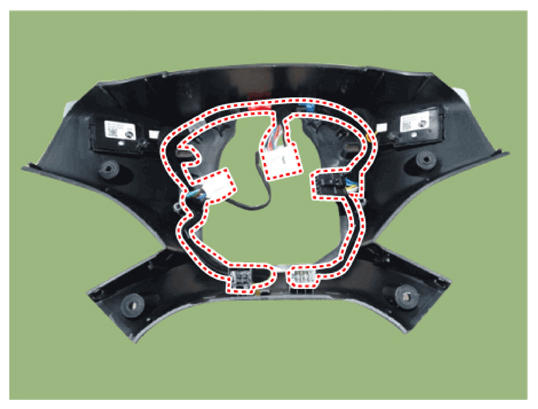

  4. Remove the lower cover from the steering wheel and then separate the wiring.
    G14210097Courtesy of HYUNDAI MOTOR AMERICA

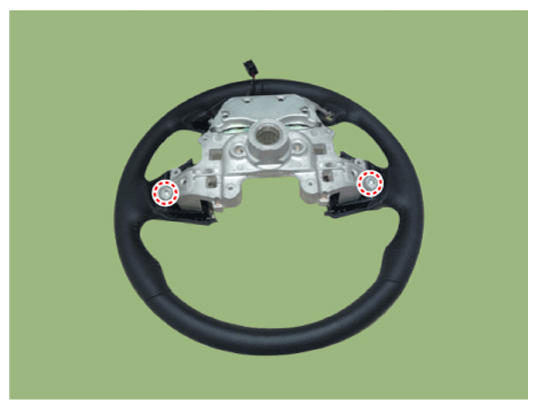

  5. Remove the screw and then remove the remote control switch.
    G14210098Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
