Home >> Genesis >> 2021 >> G90 5.0 Ultimate, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Control System - 5.0L >> Input Speed Sensor >> Repair procedures >> Inspection

Repair procedures: Inspection

  1. Check signal waveform of input speed sensor using the GDS.

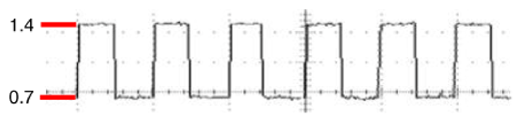

    Specification:  Refer to "Signal Wave Form" as shown below.

G14237338Courtesy of HYUNDAI MOTOR AMERICA
