Repair Procedures: Inspection

  1. Check signal waveform of output speed sensor using the GDS.

    Specification:  Refer to "Signal Wave Form".

f < 1000Hz D
G14237326Courtesy of HYUNDAI MOTOR AMERICA

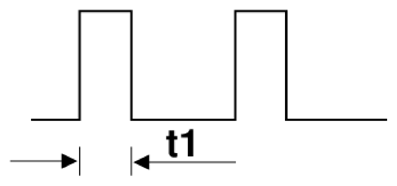

R
G14237327Courtesy of HYUNDAI MOTOR AMERICA

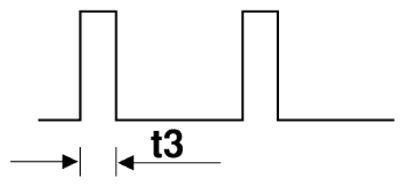

f > 1000Hz D
R
G14237328Courtesy of HYUNDAI MOTOR AMERICA
Pulse
Width		 t1 (D): 60μs (50 - 70us)
t2 (R): 120μs (102 - 138us)
t3: 30μs (24 - 36us)
