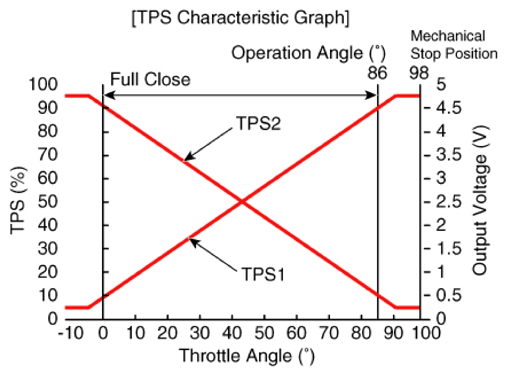

ETC Electronic Throttle Control System: Specifications: Specification: TPS2

Throttle angle	TPS (%)	Output Voltage (V) [Vref=5V]
C.T	57 - 61	2.85 - 3.05
W.O.T	0.6 - 8	0 - 0.4

Courtesy of HYUNDAI MOTOR AMERICA
