Repair Procedures: Installation

NOTE:

Perform the camera calibration in the following case.

(Refer to Front View Camera System - "REPAIR PROCEDURES ")

If the front view camera is replaced with a new one.
If the front view camera is removed and mounted.
If the front view camera coupler of the windshield glass is deformed.
If the windshield glass is changed.
When a failure code (System Out of Calibration) occur.

Install in the reverse order of removal.

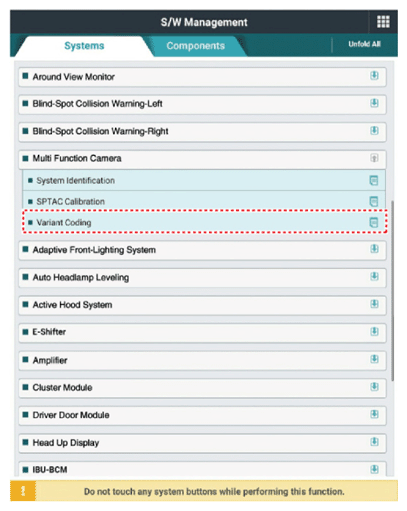

When if replacing the front view camera with a new one, perform the "Variant Coding" procedure by using the Diagnostic Tools.

Courtesy of HYUNDAI MOTOR AMERICA
Perform the front view camera unit calibration.
(Refer to Repair procedures - "SERVICE POINT TARGET AUTO CALIBRATION (SPTAC) ")
