Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

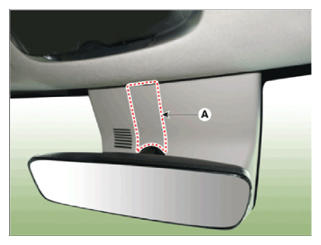

  2. Remove the inside rear view mirror cover (A).
    G14727630Courtesy of HYUNDAI MOTOR AMERICA

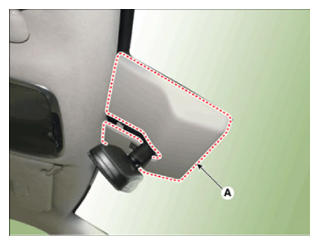

  3. Remove the rain sensor cover (A).
    G14727631Courtesy of HYUNDAI MOTOR AMERICA

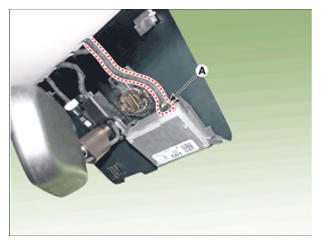

  4. Disconnect the front view camera unit connector (A).
    G14727632Courtesy of HYUNDAI MOTOR AMERICA

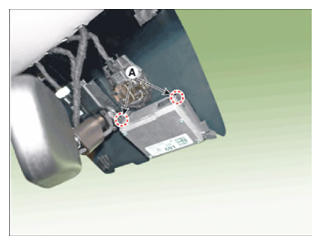

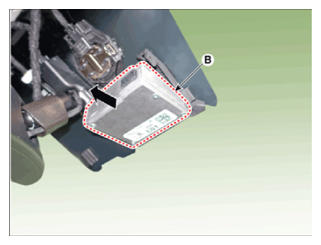

  5. Separate the fixed points (A) of coupler, remove the front view camera (B).
G14727633Courtesy of HYUNDAI MOTOR AMERICA
G14727634Courtesy of HYUNDAI MOTOR AMERICA
