Home >> Genesis >> 2021 >> GV80 3.5T Advanced >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Tailgate Module >> Power Tailgate Latch >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate trim.

    (Refer to Body - "LIFTGATE TRIM ")

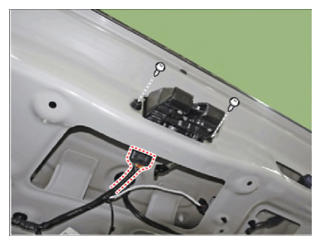

  3. Separate the connector, loosen the mounting screws and then remove the power tailgate latch.
    G14724110Courtesy of HYUNDAI MOTOR AMERICA
