Home >> Genesis >> 2021 >> GV80 3.5T Advanced >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Integrated Memory System (IMS) >> IMS Control Switch >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

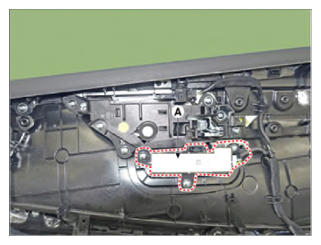

  3. Disconnect the IMS switch connector and then remove the IMS switch (A).
    G14723854Courtesy of HYUNDAI MOTOR AMERICA
