Home >> Genesis >> 2021 >> GV80 3.5T Advanced >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Repair procedures >> Removal >> Power Window Main Switch

Power Window Main Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

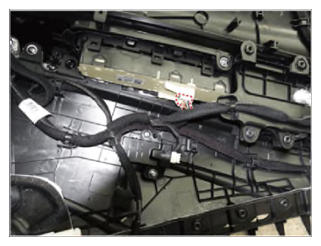

    G14724064Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect door lock switch connector.

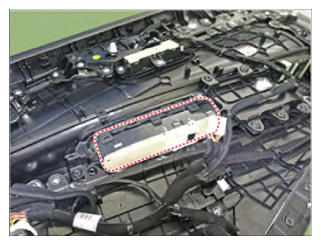

    G14724065Courtesy of HYUNDAI MOTOR AMERICA
