Home >> Genesis >> 2021 >> GV80 3.5T Advanced >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System - 3.5L >> Components & Components Location >> Components

Components & Components Location: Components

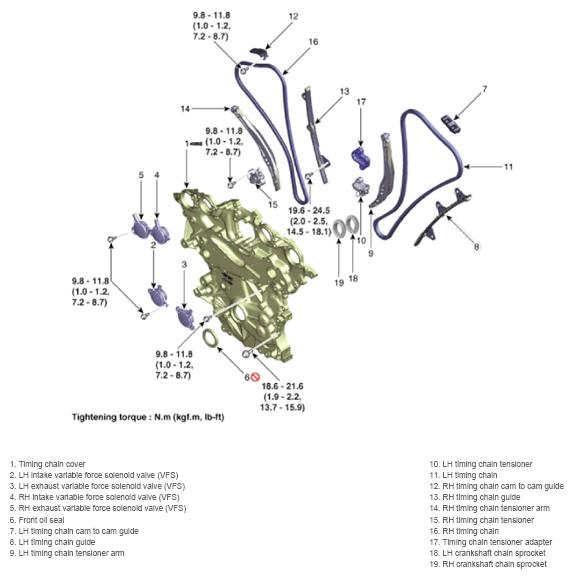

Fig 1: Timing System Components Location With Torque Specifications

G14727927

Courtesy of HYUNDAI MOTOR AMERICA
