Home >> Genesis >> 2021 >> GV80 3.5T Advanced >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> 4WD Control Diagnosis >> DTC P3101-00: Control Module - Motor Overcurrent >> Troubleshooting >> Diagnostic Flowchart

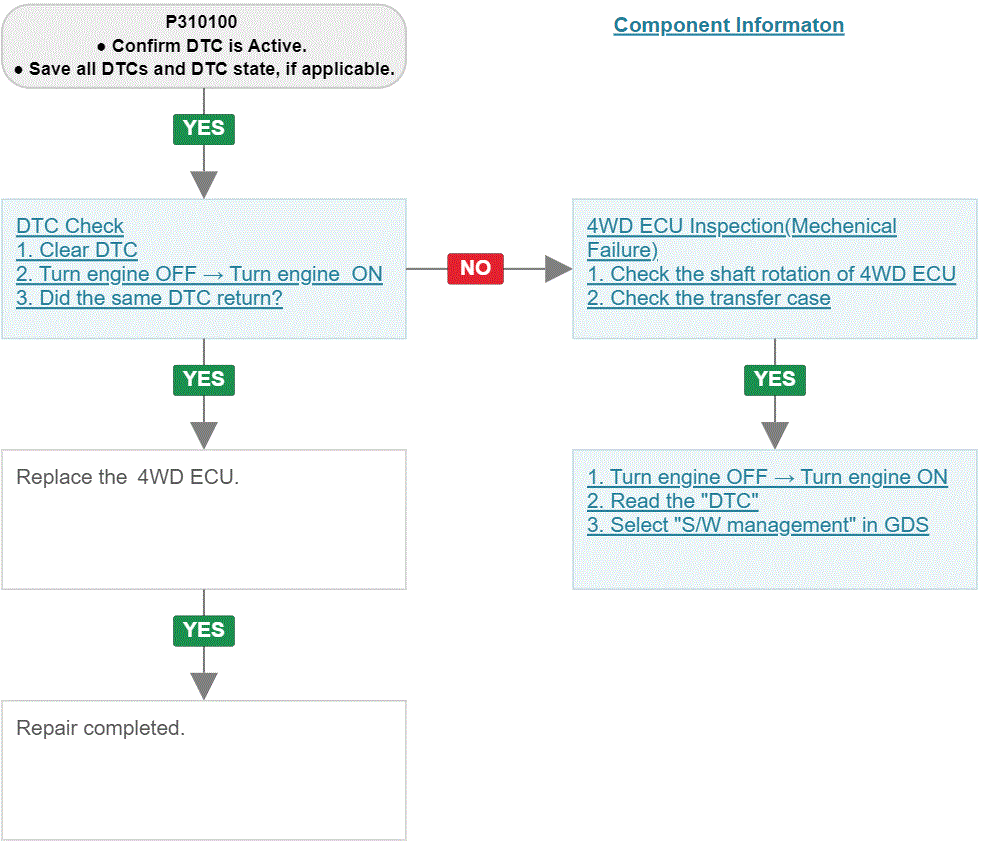

Diagnostic Flowchart

G14719827Courtesy of HYUNDAI MOTOR AMERICA
