Bank 2/Intake

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the engine cover.

    (Refer to Engine Mechanical System - "ENGINE COVER ")

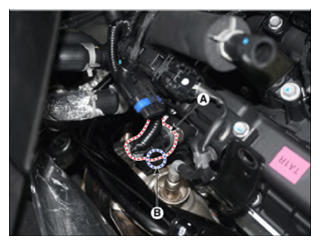

  3. Disconnect the camshaft position sensor connector (A).
  4. Remove the camshaft position sensor after loosening the mounting bolt (B).
G15591449Courtesy of HYUNDAI MOTOR AMERICA
