Home >> Genesis >> 2022 >> G70 3.3T, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> Fuel Tank Pressure Sensor (FTPS) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

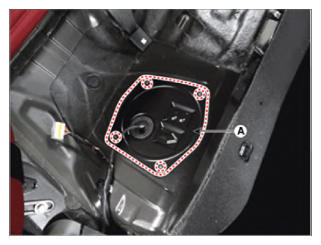

  3. Remove the sub fuel sender service cover (A) after loosening the mounting screws.
    G15591494Courtesy of HYUNDAI MOTOR AMERICA

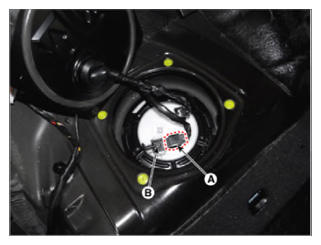

  4. Disconnect the fuel tank pressure sensor conector (A).
  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
    G15591495Courtesy of HYUNDAI MOTOR AMERICA
