Smart Key Code Saving

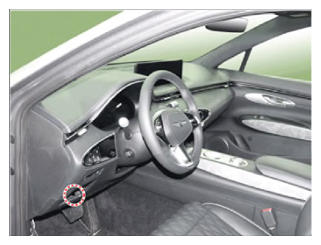

  1. Connect the DLC cable of Diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on Diagnostic tool.
    G14754706Courtesy of HYUNDAI MOTOR AMERICA

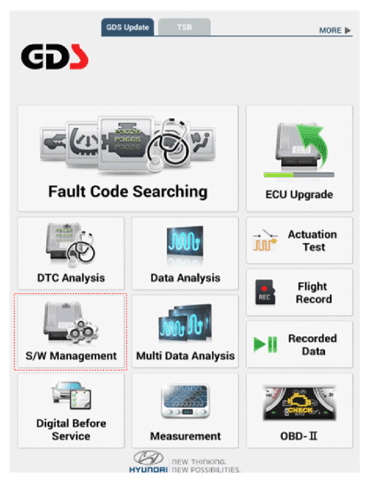

  2. Select the 'S/W Management' and 'Car model'.
    G14754707Courtesy of HYUNDAI MOTOR AMERICA

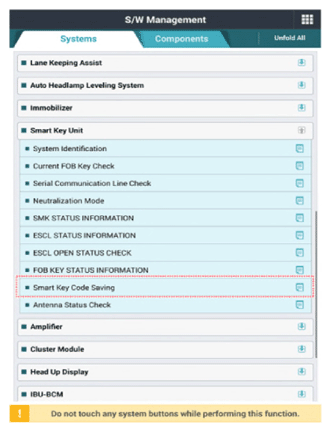

  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
    G14754708Courtesy of HYUNDAI MOTOR AMERICA

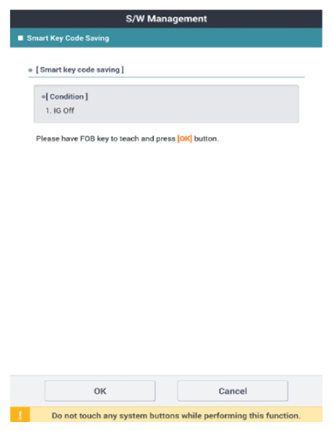

  4. Follow the instructions on the screen.
G14754709Courtesy of HYUNDAI MOTOR AMERICA
