Wheel Alignment: Tires/Wheels/Alignment: Wheel: Removal

NOTE:

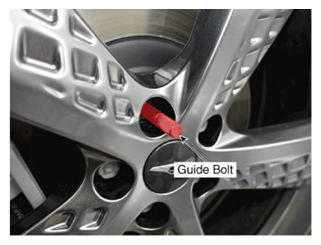

  • Safely remove the wheel and tire using the guide bolt included in the Tire Mobility Kit (TMK).
    G14753651Courtesy of HYUNDAI MOTOR AMERICA
  • Be careful not to damage the hub bolts when removing the rear wheel and tire.
  1. Remove the wheel and tire (A).

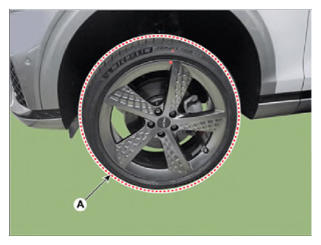

    [Front]

    G14753652Courtesy of HYUNDAI MOTOR AMERICA

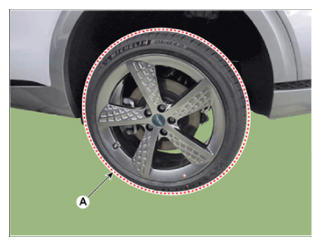

    [Rear]

    G14753653Courtesy of HYUNDAI MOTOR AMERICA
