Start-Stop Button: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad garnish [RH].

    (Refer to Body - "CRASH PAD GARNISH ")

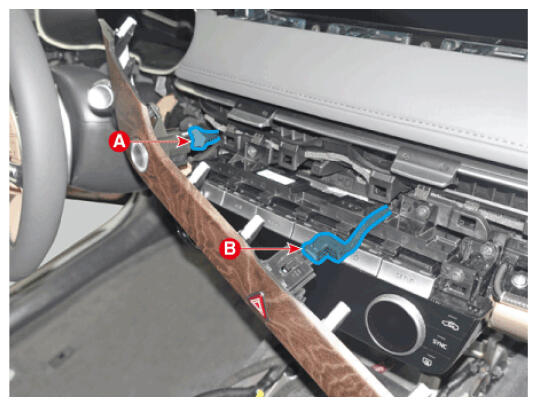

  3. Disconnect the Start/Stop button connector (A) and hazard switch connector (B).
    G16872632Courtesy of HYUNDAI MOTOR AMERICA
  4. Loosen the mounting screws and remove the Start/Stop button (A).
G16872633Courtesy of HYUNDAI MOTOR AMERICA
