Home >> Genesis >> 2023 >> Electrified G80 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Trunk Module >> Power Trunk Inner Switch >> Removal

Power Trunk Inner Switch: Removal

  1. Disconnect the negative (-) battery terminal.

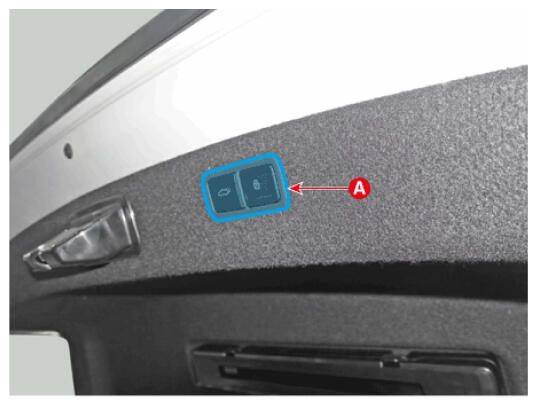

  2. Remove the trunk inner switch (A) from the trunk lid trim.
    G16872930Courtesy of HYUNDAI MOTOR AMERICA

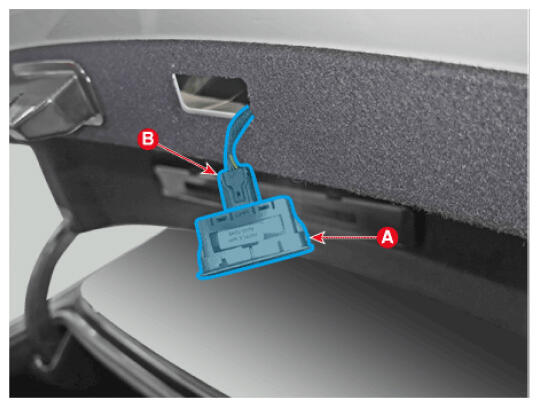

  3. Disconnect the connector (B) and remove the trunk inner switch (A).
G16872931Courtesy of HYUNDAI MOTOR AMERICA
