Home >> Genesis >> 2023 >> Electrified G80 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Diagnostic >> Inspection >> Neutralization Status Check

Neutralization Status Check

  1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel.
  2. Select the 'S/W Management' and 'Car model'.

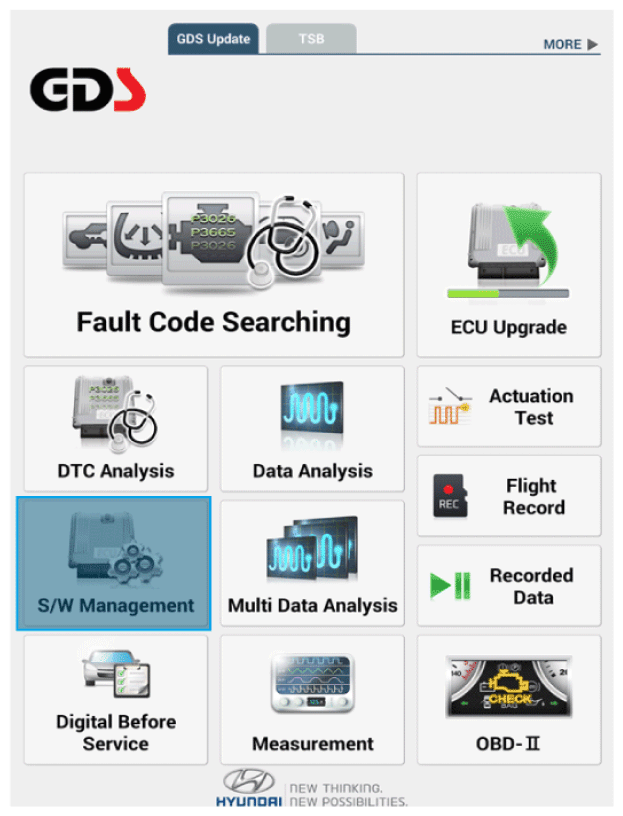

    G16872603Courtesy of HYUNDAI MOTOR AMERICA
  3. Select the 'Smart Key Unit' and 'Neutralization Mode'.

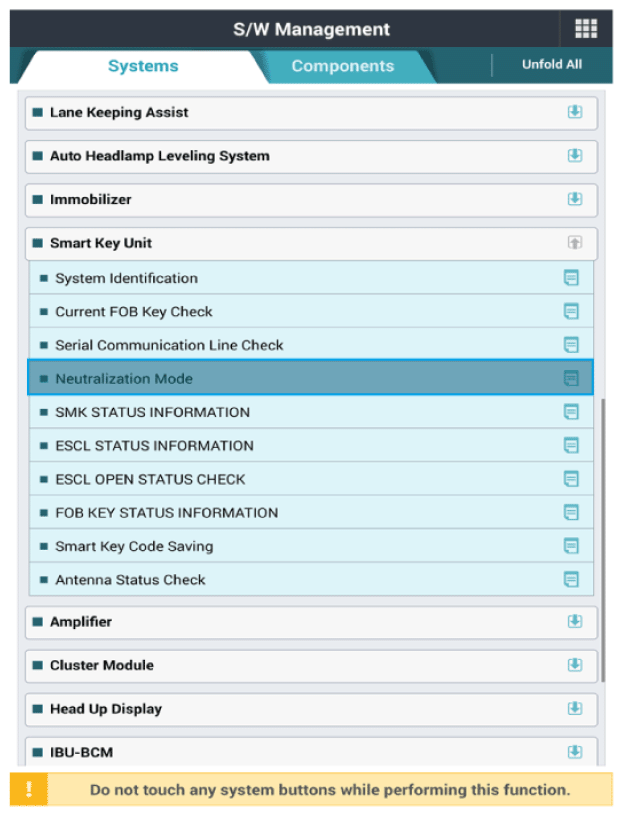

G16872604Courtesy of HYUNDAI MOTOR AMERICA

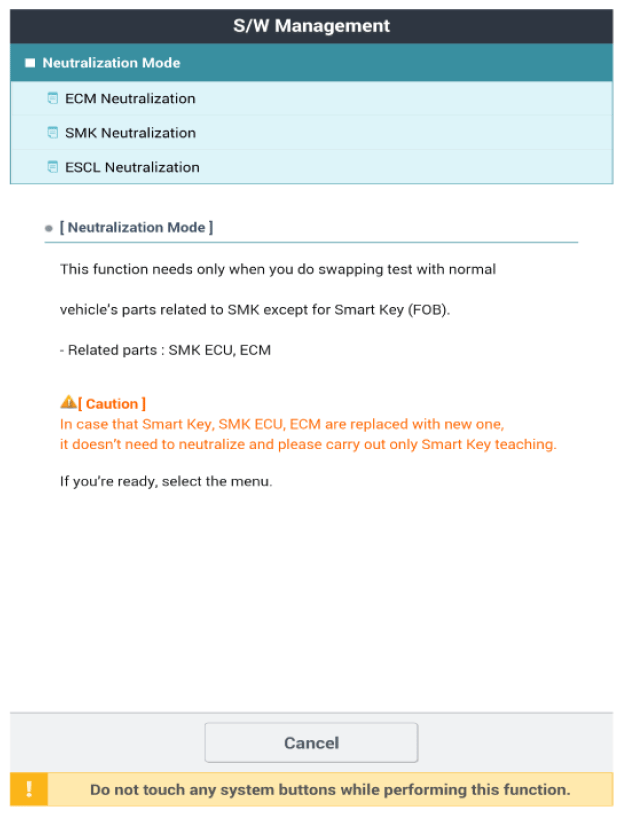

G16872605Courtesy of HYUNDAI MOTOR AMERICA
