Home >> Genesis >> 2023 >> Electrified G80 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Removal >> Buzzer

Smart Key Unit: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guard.

    (Refer to Body - "FRONT WHEEL GUARD ")

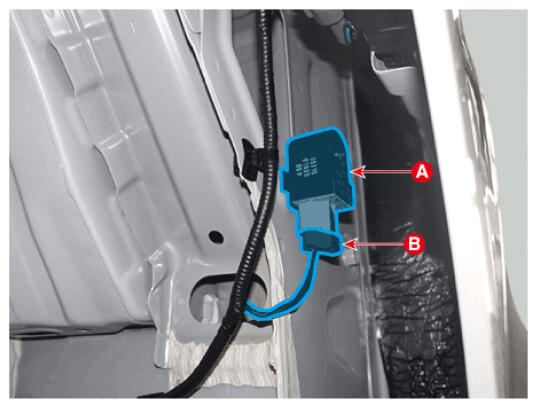

  3. Remove the buzzer (A) after disconnecting the connector (B).
G16872609Courtesy of HYUNDAI MOTOR AMERICA
