Home >> Genesis >> 2023 >> Electrified G80 >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Motor >> Components And Components Location >> Components

Components And Components Location: Components

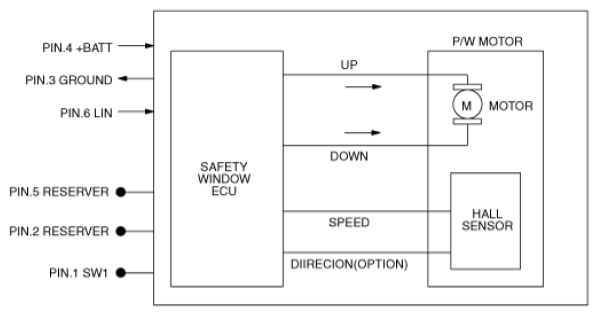

G16872867Courtesy of HYUNDAI MOTOR AMERICA
Connector A
G16872868Courtesy of HYUNDAI MOTOR AMERICA
Pin Description
1 Switch 1
2 -
3 Ground
4 Battery (+)
5 -
6 LIN

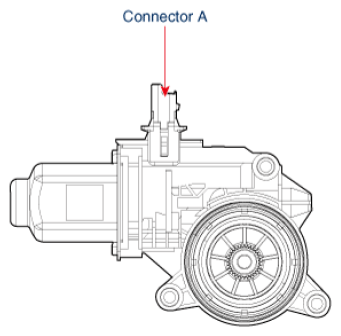

G16872869Courtesy of HYUNDAI MOTOR AMERICA
