Windshield Glass: Removal
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- Use seat covers to avoid damaging any surfaces.
- Remove the roof side molding if necessary.
(Refer to Body Side Moldings - "Roof Side Molding")
- Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
- Remove the inside rear view mirror assembly.
(Refer to Mirror - "INSIDE REAR VIEW MIRROR ")
- Remove the cowl top cover.
(Refer to "COWL TOP COVER ")

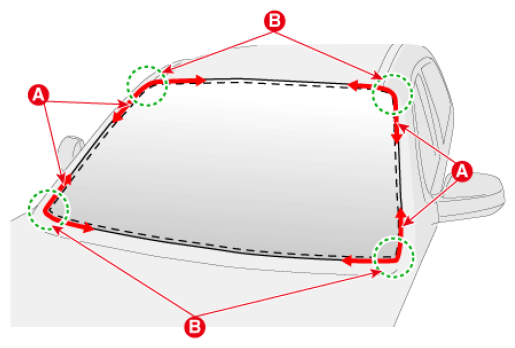

- Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.

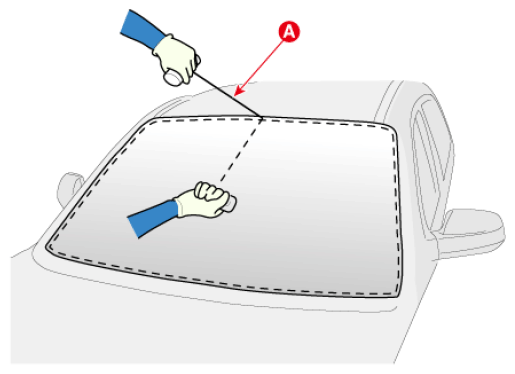

- Put in a piano wire (A) through the corner of the windshield glass and insert wire grips into both ends of the wire.

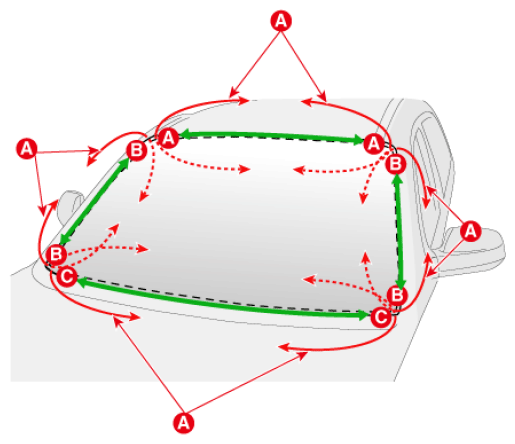

- Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.

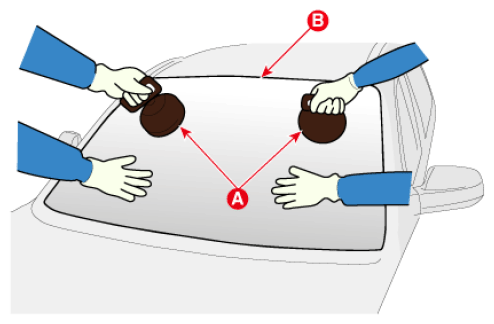

- Remove the windshield glass (B) carefully using the glass holder (A).
