Variant Coding

  1. Ignition switch OFF, connect GDS.

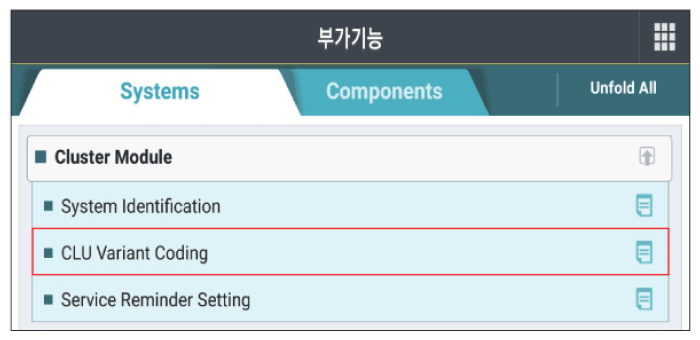

  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".
G16822619Courtesy of HYUNDAI MOTOR AMERICA

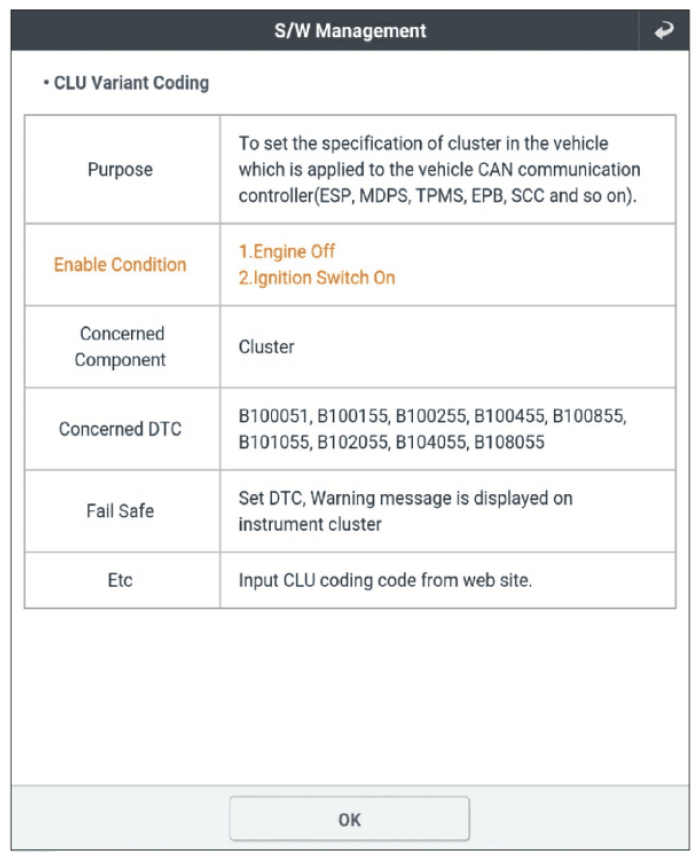

G16822620Courtesy of HYUNDAI MOTOR AMERICA

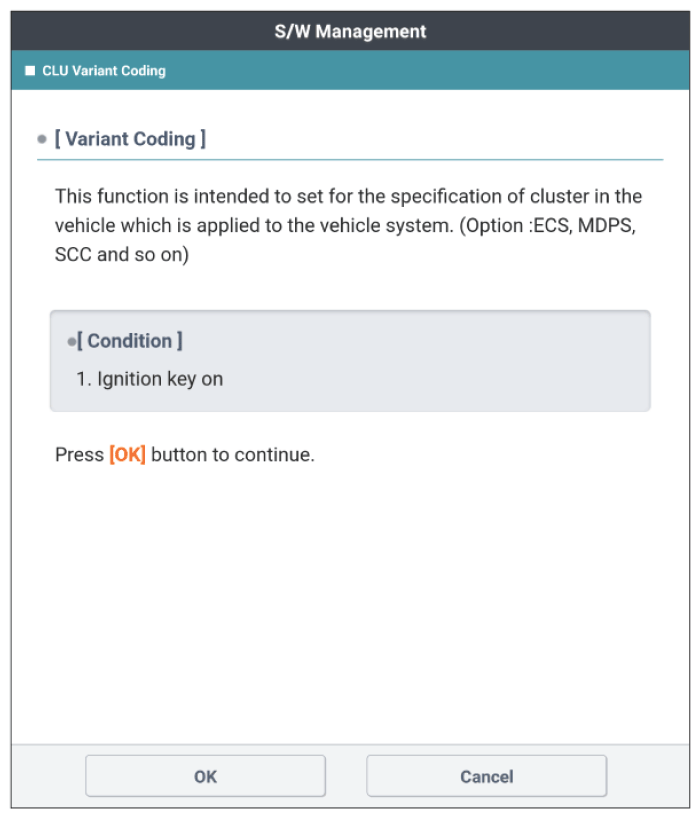

G16822621Courtesy of HYUNDAI MOTOR AMERICA

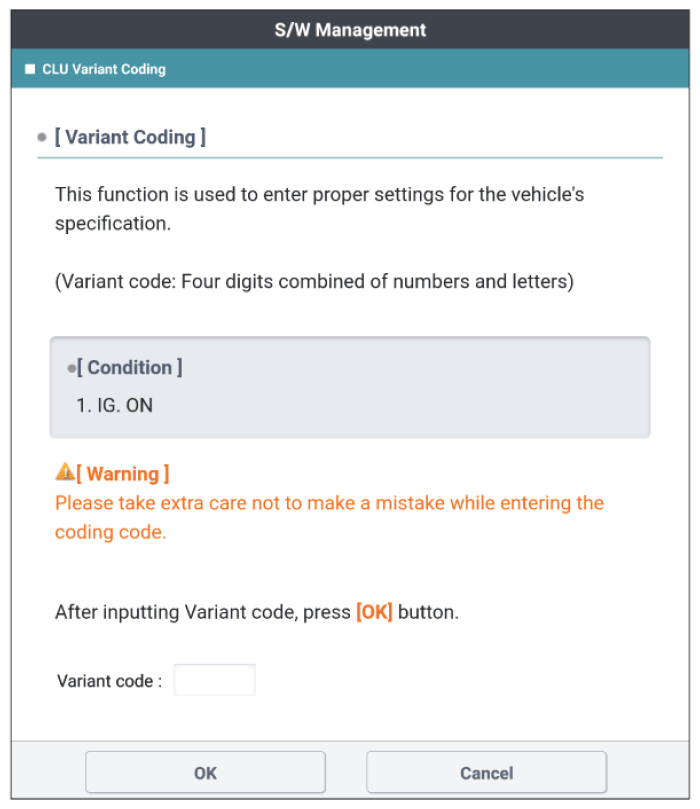

G16822622Courtesy of HYUNDAI MOTOR AMERICA

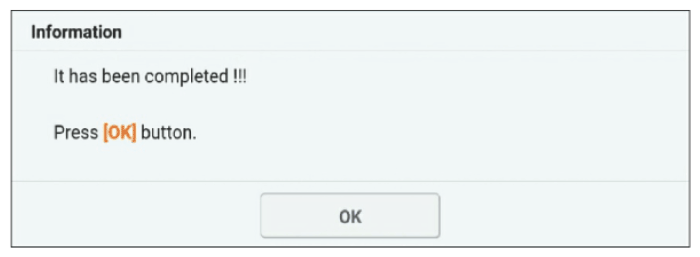

G16822623Courtesy of HYUNDAI MOTOR AMERICA
