Variant Coding

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".

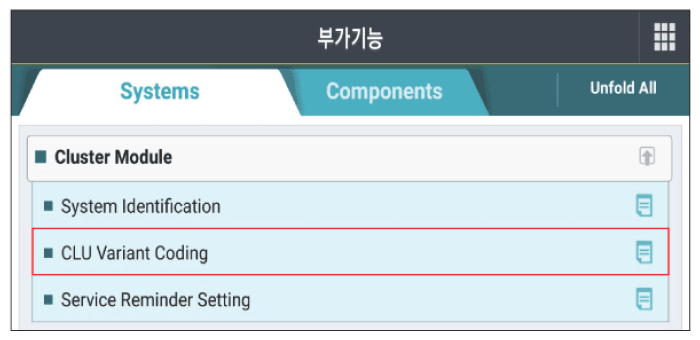

G16822655Courtesy of HYUNDAI MOTOR AMERICA

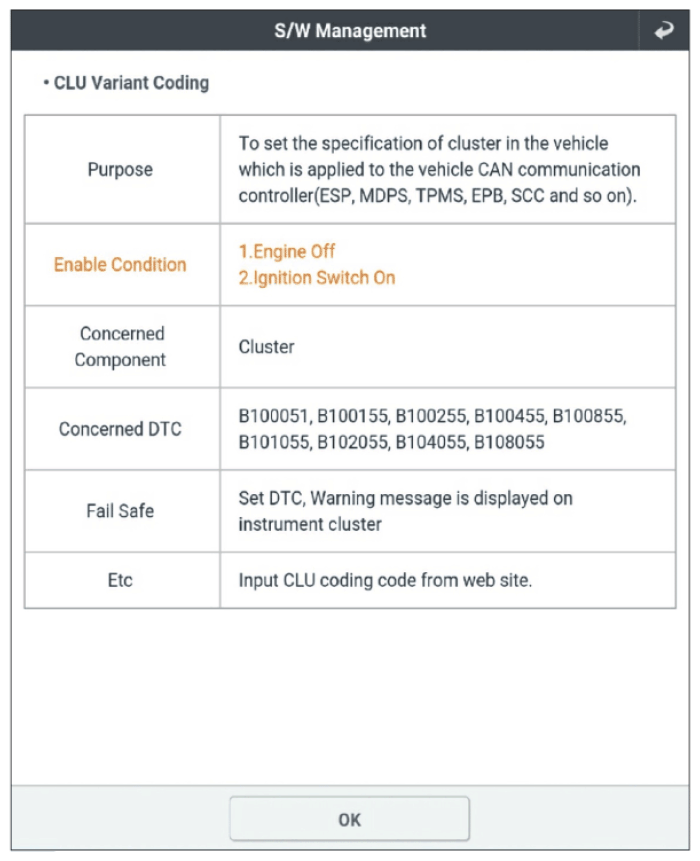

G16822656Courtesy of HYUNDAI MOTOR AMERICA

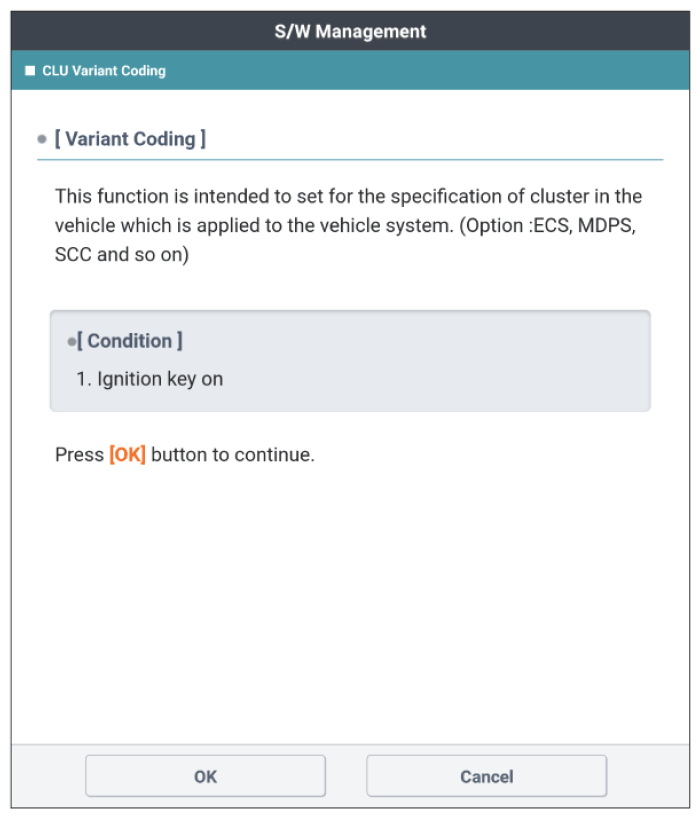

G16822657Courtesy of HYUNDAI MOTOR AMERICA

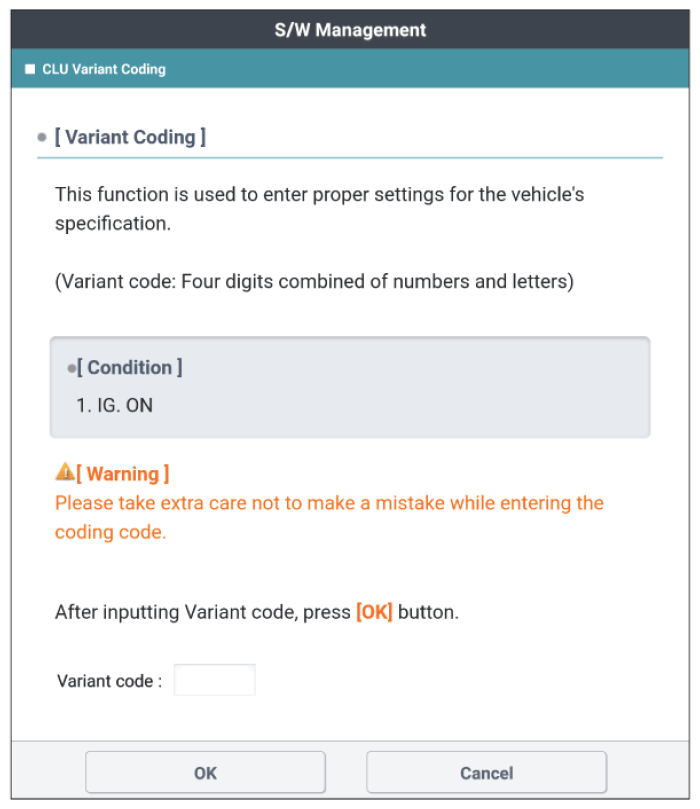

G16822658Courtesy of HYUNDAI MOTOR AMERICA

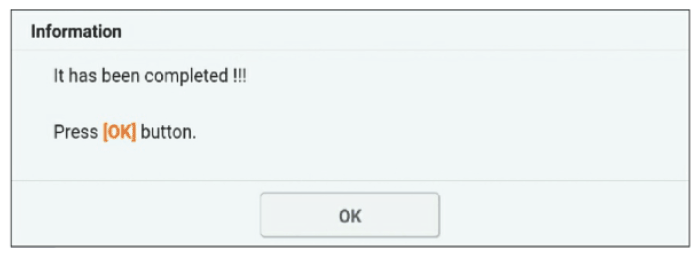

G16822659Courtesy of HYUNDAI MOTOR AMERICA
