Variant Coding

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".

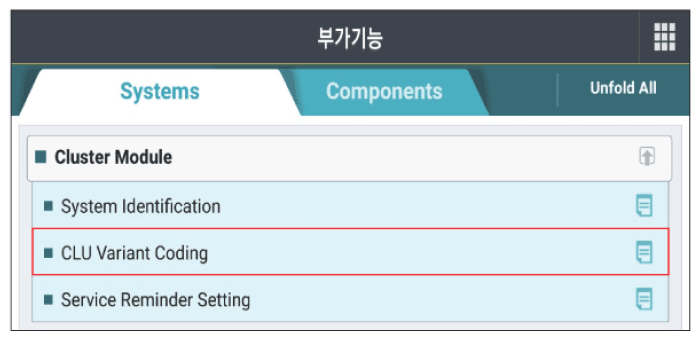

G16822727Courtesy of HYUNDAI MOTOR AMERICA

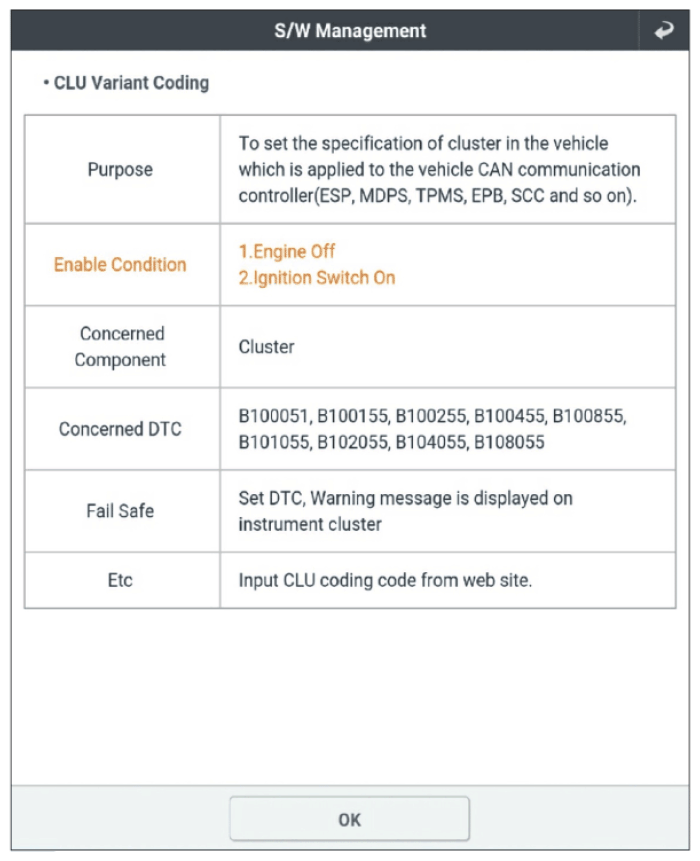

G16822728Courtesy of HYUNDAI MOTOR AMERICA

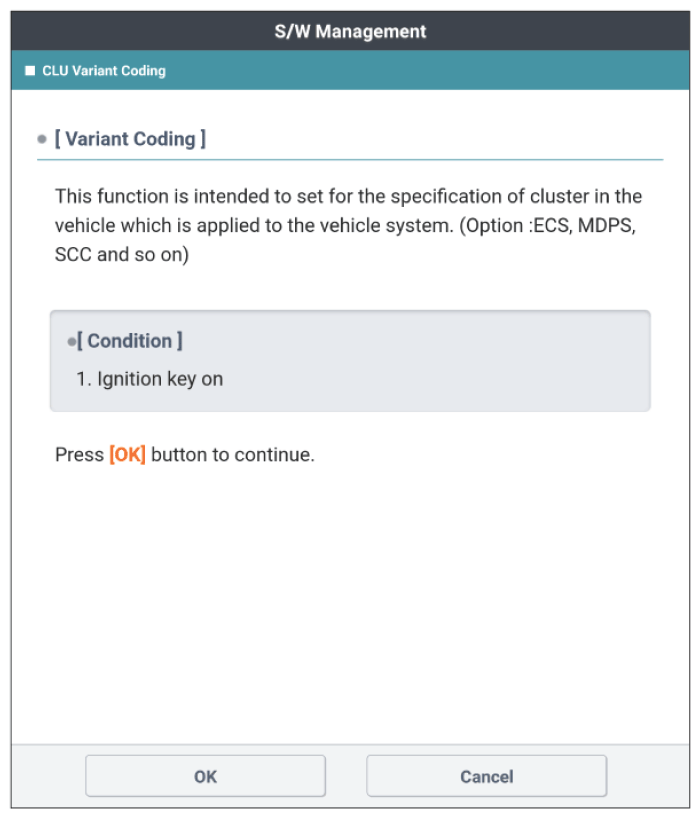

G16822729Courtesy of HYUNDAI MOTOR AMERICA

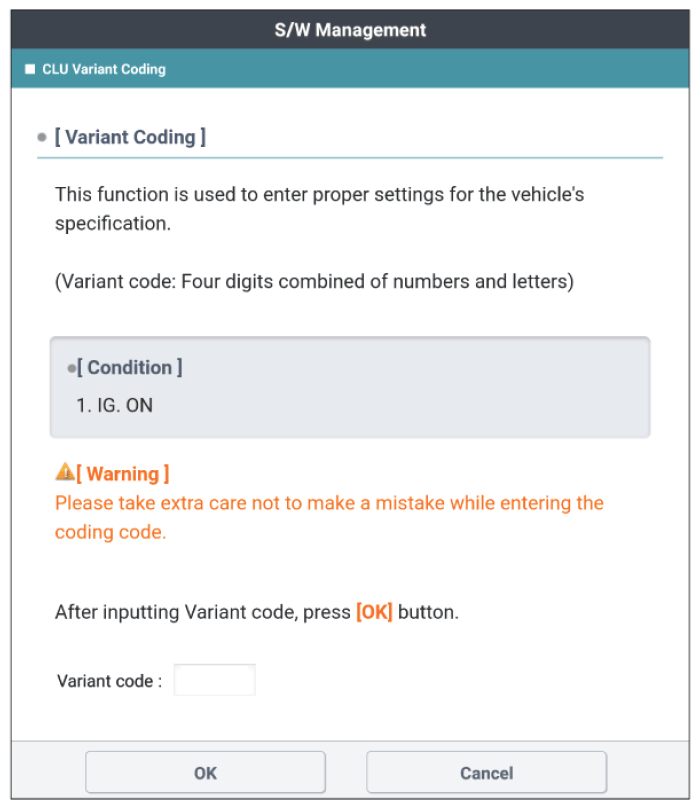

G16822730Courtesy of HYUNDAI MOTOR AMERICA

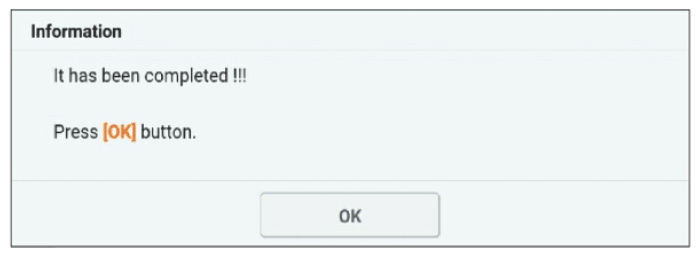

G16822731Courtesy of HYUNDAI MOTOR AMERICA
