Repair Procedures: Inspection
- Remove the trunk lid trim after opening the trunk.
(Refer to Body - "TRUNK LID TRIM ")

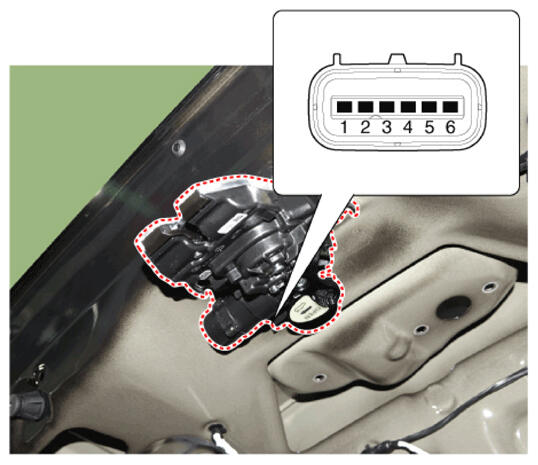

- Disconnect the power latch and cinching connectors.
- Connect the power latch terminals directly to battery voltage (12V) and check that the motor operates smoothly.

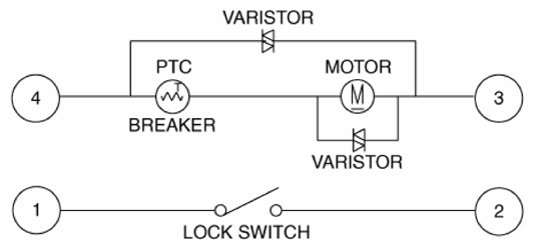

[Latch & Actuator]
Terminal LOCK→ UNLOCK UNLOCK LOCK→ 4 + X 3 - 1 & 2 OFF → ON ON → OFF

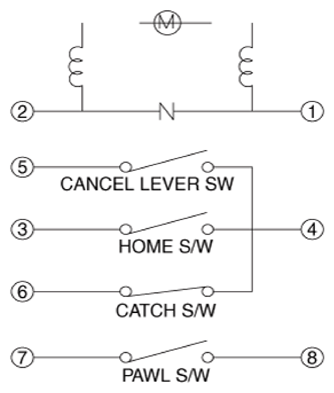

[Cinching & S Actuator]
| Terminal | OPEN | OPEN→ 1 ST LOCK | 1ST LOCK→ 2ND LOCK | 2ND LOCK → RETURN | RETURN POSITION |
|---|---|---|---|---|---|
| 2 | X | - | - | + | X |
| 1 | + | + | - | ||
| 4 & 3 | ON | ON | ON | OFF | OFF |
| 4 & 5 | ON | ON → OFF | OFF | OFF | OFF |
| 4 & 6 | ON | ON | ON - OFF | OFF | OFF |
| 7 & 8 | ON | ON → OFF | OFF→ON→OFF | OFF | OFF |
