Home >> Genesis >> 2024 >> G70 2.5T, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Trunk Module >> Power Trunk Inner Switch >> Repair Procedures >> Inspection

Repair Procedures: Inspection

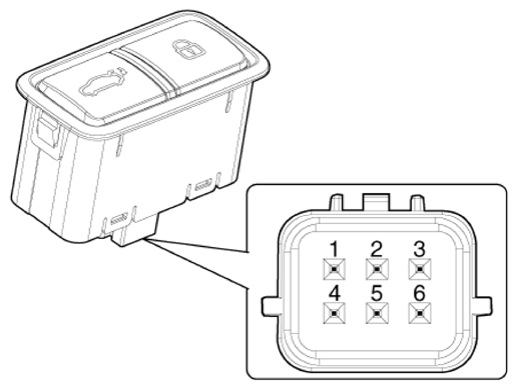

  1. Remove the trunk inner switch.

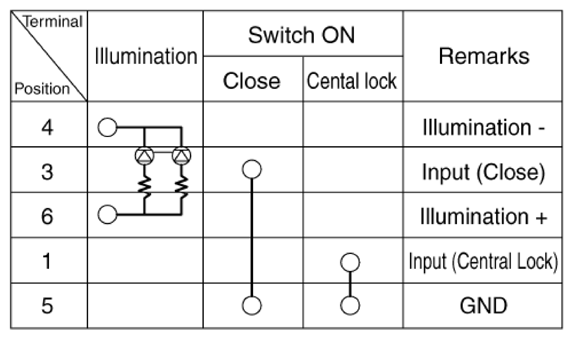

  2. Check for continuity between terminals of the trunk inner switch.
    G16832593Courtesy of HYUNDAI MOTOR AMERICA
    G16832594Courtesy of HYUNDAI MOTOR AMERICA
