Home >> Genesis >> 2024 >> G70 2.5T, RWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Motor >> Components And Components Location >> Components

Components And Components Location: Components

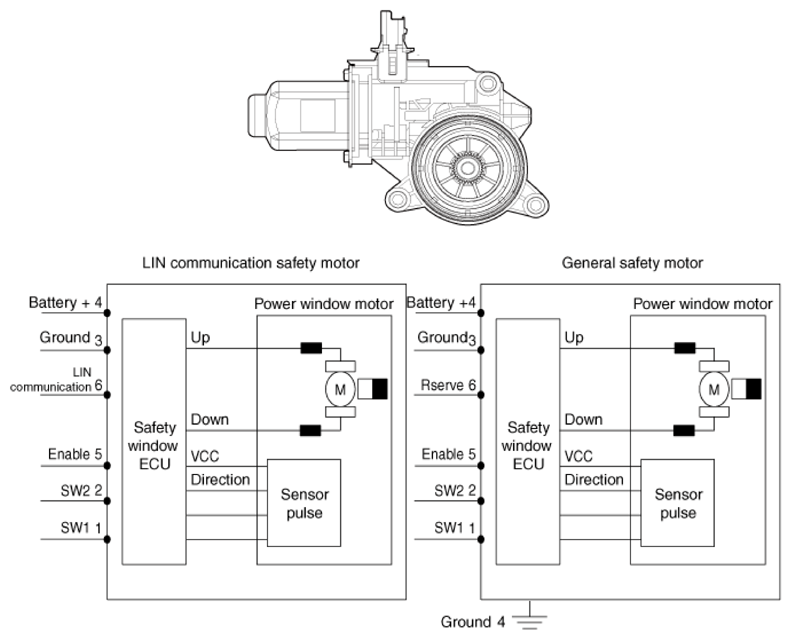

G16832525Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin Description Pin Description
G16832526Courtesy of HYUNDAI MOTOR AMERICA
 1 Switch 1 4 Beatty (+)
2 Switch 2 5 Enable
3 Ground 6 Reserve
