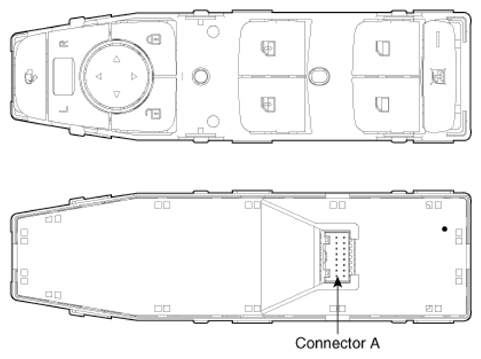

Driver power window switch
| Connector A | Front safety + With IMS | Front safety + Without IMS | ||
|---|---|---|---|---|
| Pin | Description | Pin | Description | |
| 1 | - | 1 | - | |
| 2 | B-CAN LOW | 2 | B-CAN LOW | |
| 3 | B-CAN HIGH | 3 | B-CAN HIGH | |
| 4 | Ground | 4 | - | |
| 5 | LIN | 5 | - | |
| 6 | - | 6 | - | |
| 7 | Assist safety power window | 7 | Assist safety power window | |
| 3 | B+ | 8 | B+ | |
| 9 | Ground | 9 | Ground | |
| 10 | - | 10 | Mirror folding | |
| 11 | - | 11 | Mirror unfolding | |
| 12 | IMS switch input | 12 | - | |
| 13 | - | 13 | Mirror motor (RH/LH) | |
| 14 | - | 14 | Mirror motor (Up/Down) | |
| 15 | Driver safety power window | 15 | Driver safety power window | |
| 16 | Ignition 1 | 16 | Ignition 1 | |
