Repair Procedures: Removal

Turn ignition switch OFF and disconnect the battery negative (-) cable.

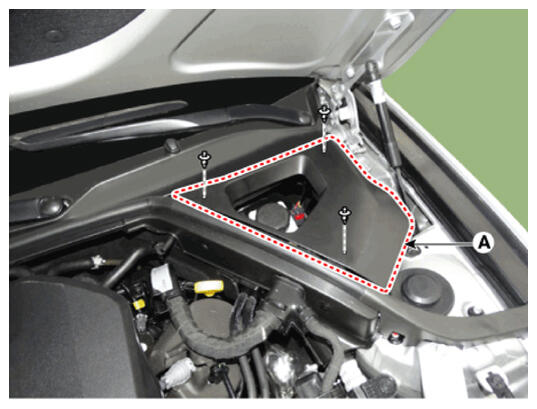

Remove the engine room front cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

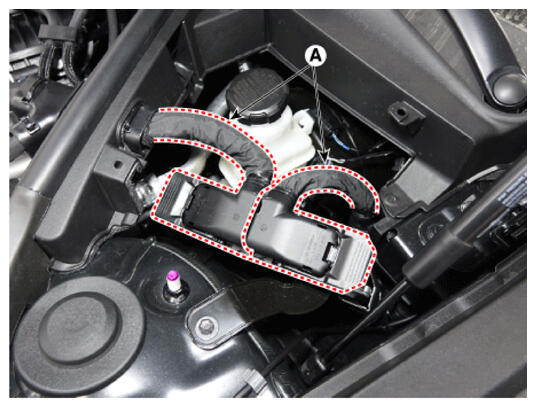

Disconnect the ECM connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

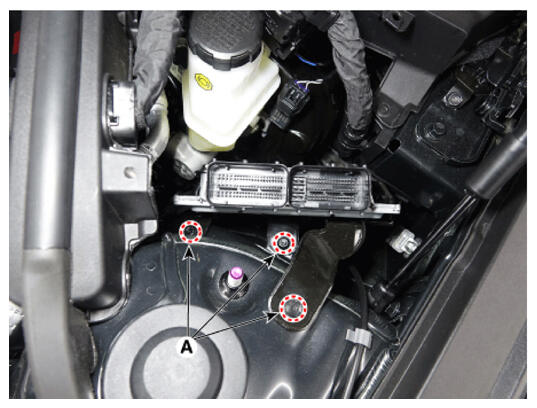

After removing the ECM bracket installation nuts (A), remove the ECM bracket assembly.
Tightening torque:

7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

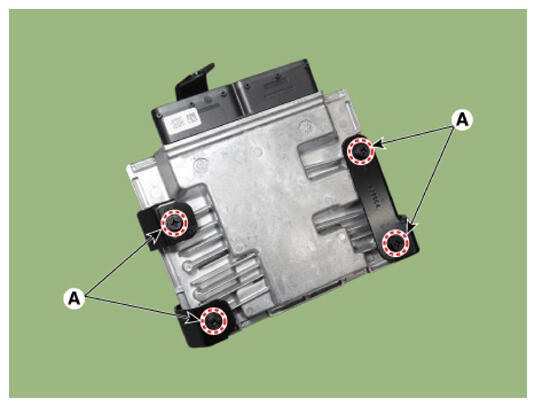

After removing the installation bolts and nut (A), remove the ECM from the bracket.
Tightening torque:

7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
