Home >> Genesis >> 2024 >> GV80 2.5T Advanced >> Repair and Diagnosis >> Electrical >> Horns >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Remove the front bumper cover.

    (Refer to Front Bumper Assembly Body - "Front Bumper Cover")

  2. Remove the bolts and disconnect the horn connectors (C), then remove the high pitch horn (B) and low pitch horn (A).

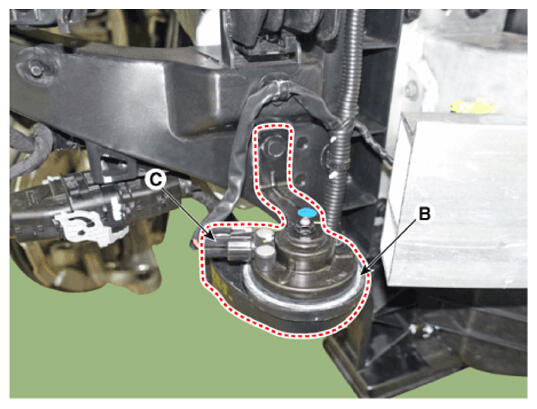

    G16774326Courtesy of HYUNDAI MOTOR AMERICA

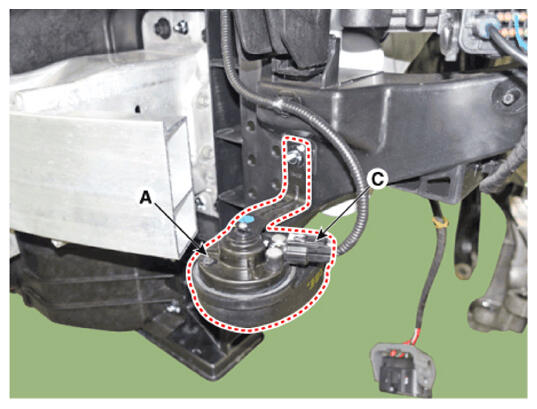

    G16774327Courtesy of HYUNDAI MOTOR AMERICA
