Home >> Genesis >> 2025 >> GV70 2.5T Advanced >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key >> Adjustment >> Smart Key Code Saving

Smart Key Code Saving

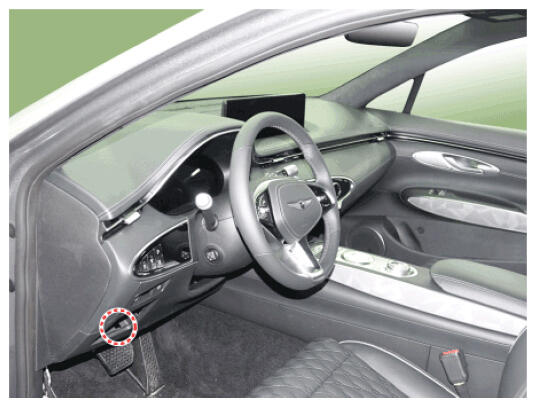

  1. Connect the DLC cable of Diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on Diagnostic tool.
    G16855777Courtesy of HYUNDAI MOTOR AMERICA
  2. Select the 'S/W Management' and 'Car model'.
    G16855778Courtesy of HYUNDAI MOTOR AMERICA

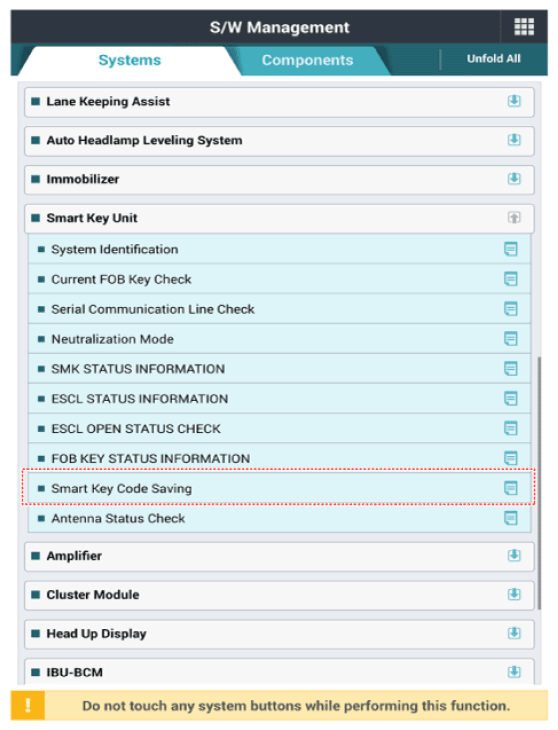

  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
    G16855779Courtesy of HYUNDAI MOTOR AMERICA

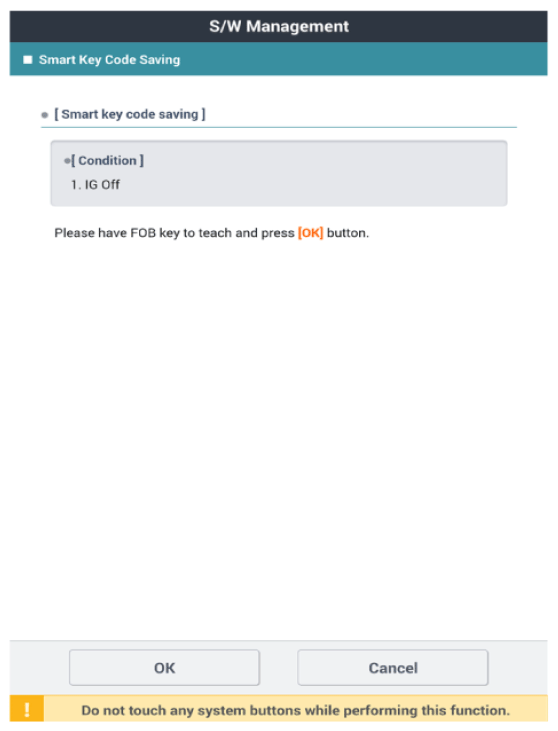

  4. Follow the instructions on the screen.
    G16855780Courtesy of HYUNDAI MOTOR AMERICA
