Component Locations

The passenger compartment fuse block is located beneath the instrument panel on the driver's side behind the door marked FUSE. To identify and check passenger compartment fuses, refer to the Fuse Usage Chart on reverse side of fuse panel door. The main fuse block is in the engine compartment on top of the left fender well. Printed on the cover are the functions of each fuse, fusible thermal link and relay.

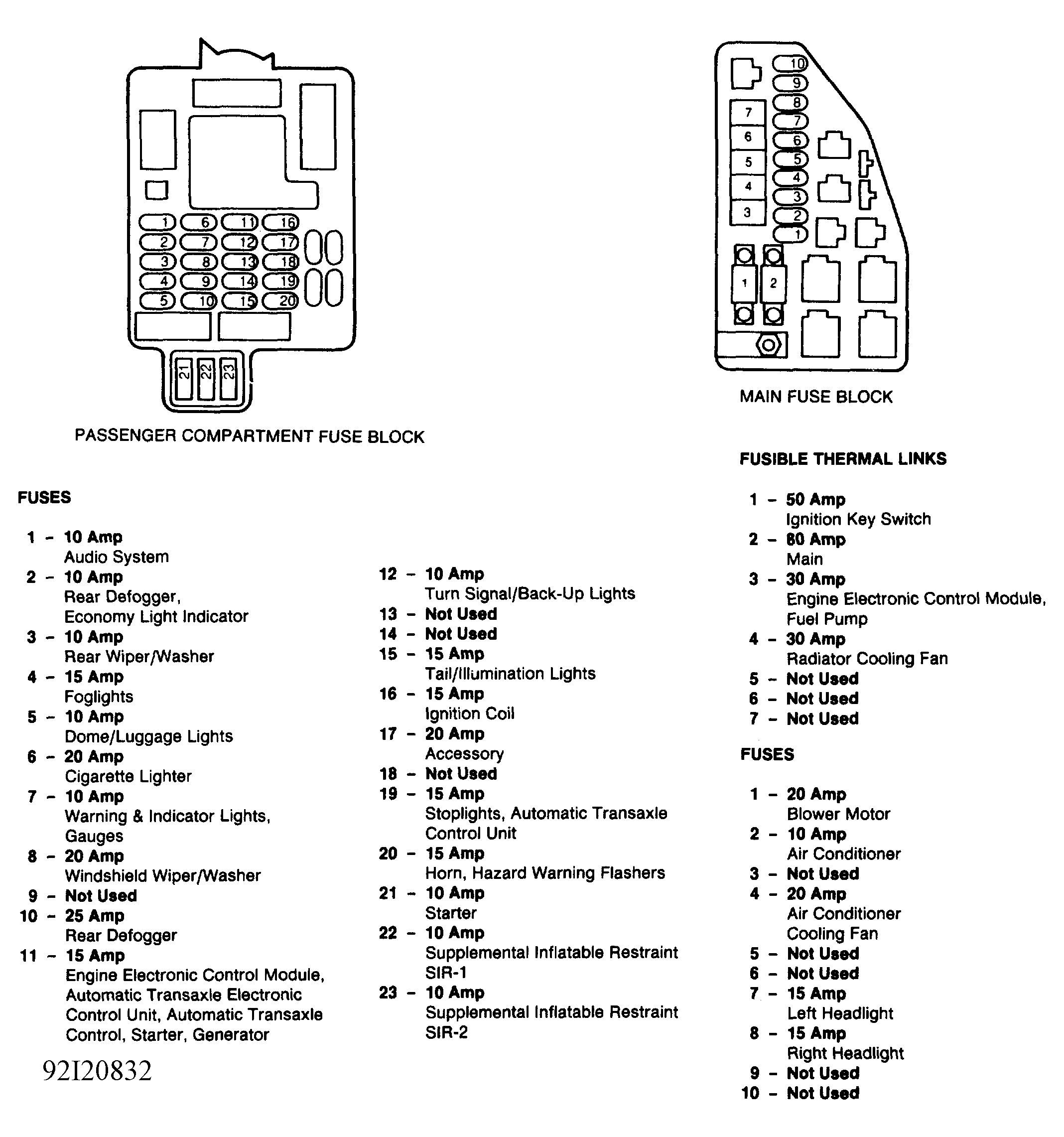

Fig 1: Fuse Panel Identification

Courtesy of GENERAL MOTORS CORP.

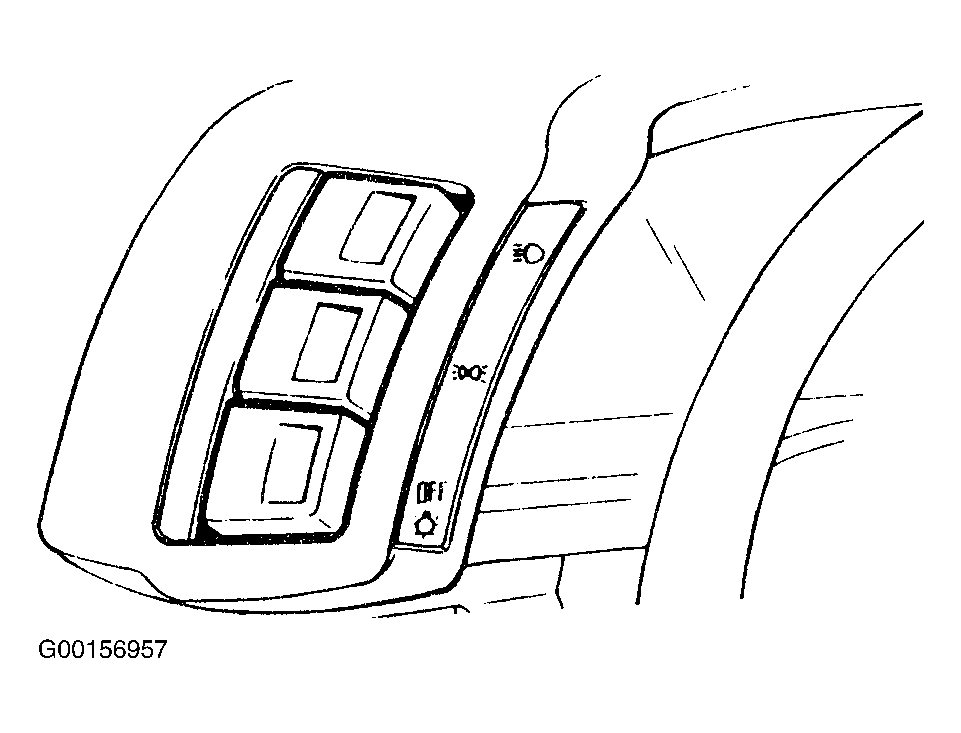

Fig 2: Locating Lamp Switch On Meter Hood

Courtesy of GENERAL MOTORS CORP.

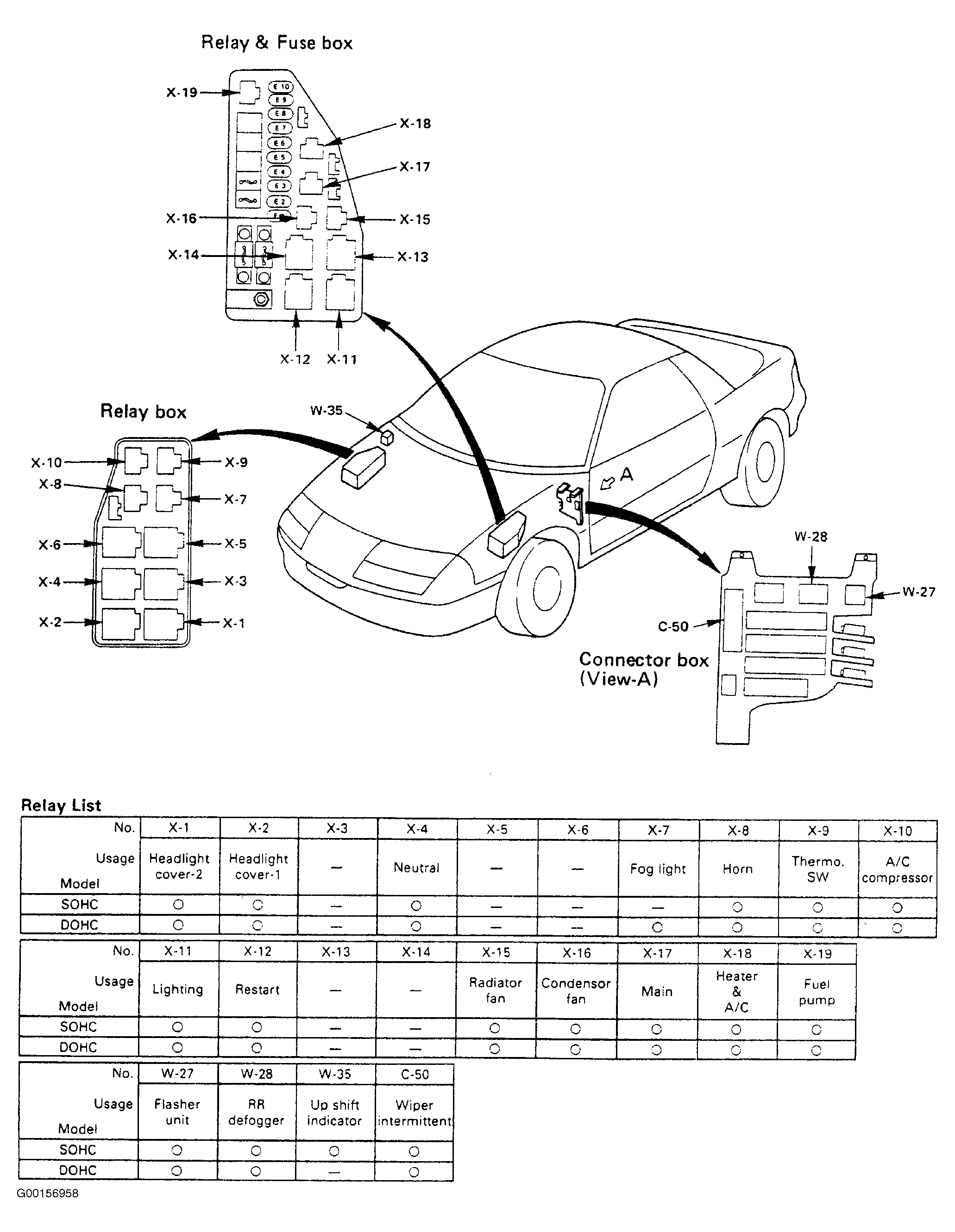

Fig 3: Identifying Lighting System Relay Locations

Courtesy of GENERAL MOTORS CORP.
