Diagnostic Aids

With throttle closed, TPS voltage should be less than 1.25 volt. TPS voltage should steadily increase as throttle is opened. Code 21A will appear if Purple/Red wire is shorted to voltage. If code is intermittent, see TESTS W/O CODES article.

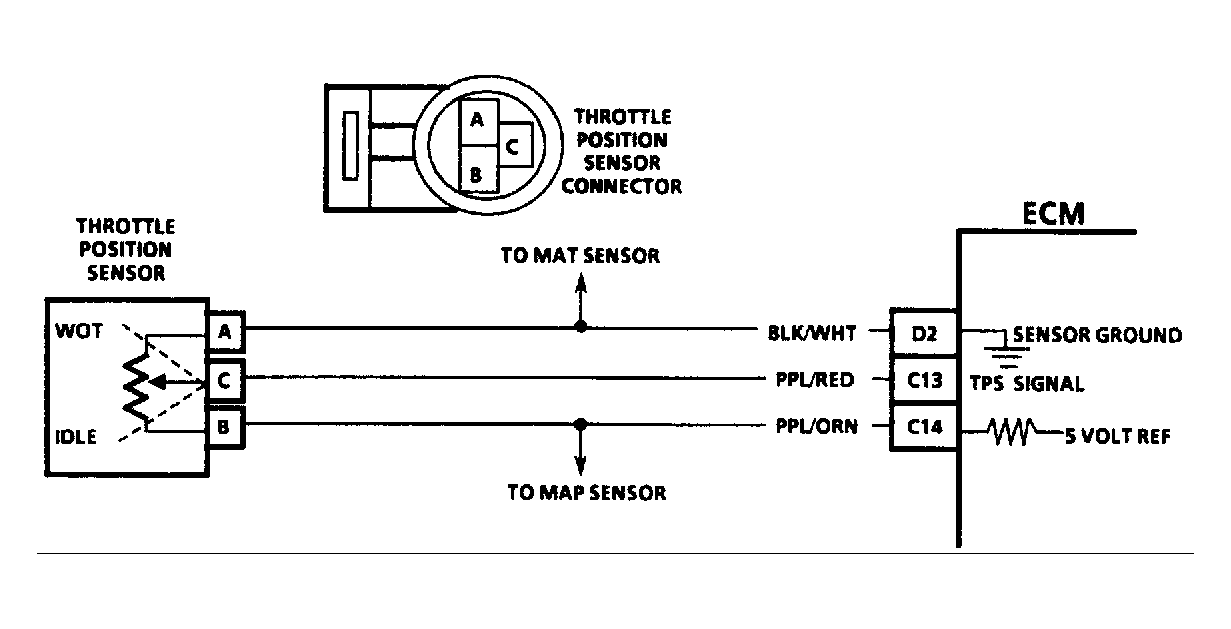

Fig 1: Code 21A Circuit Diagram

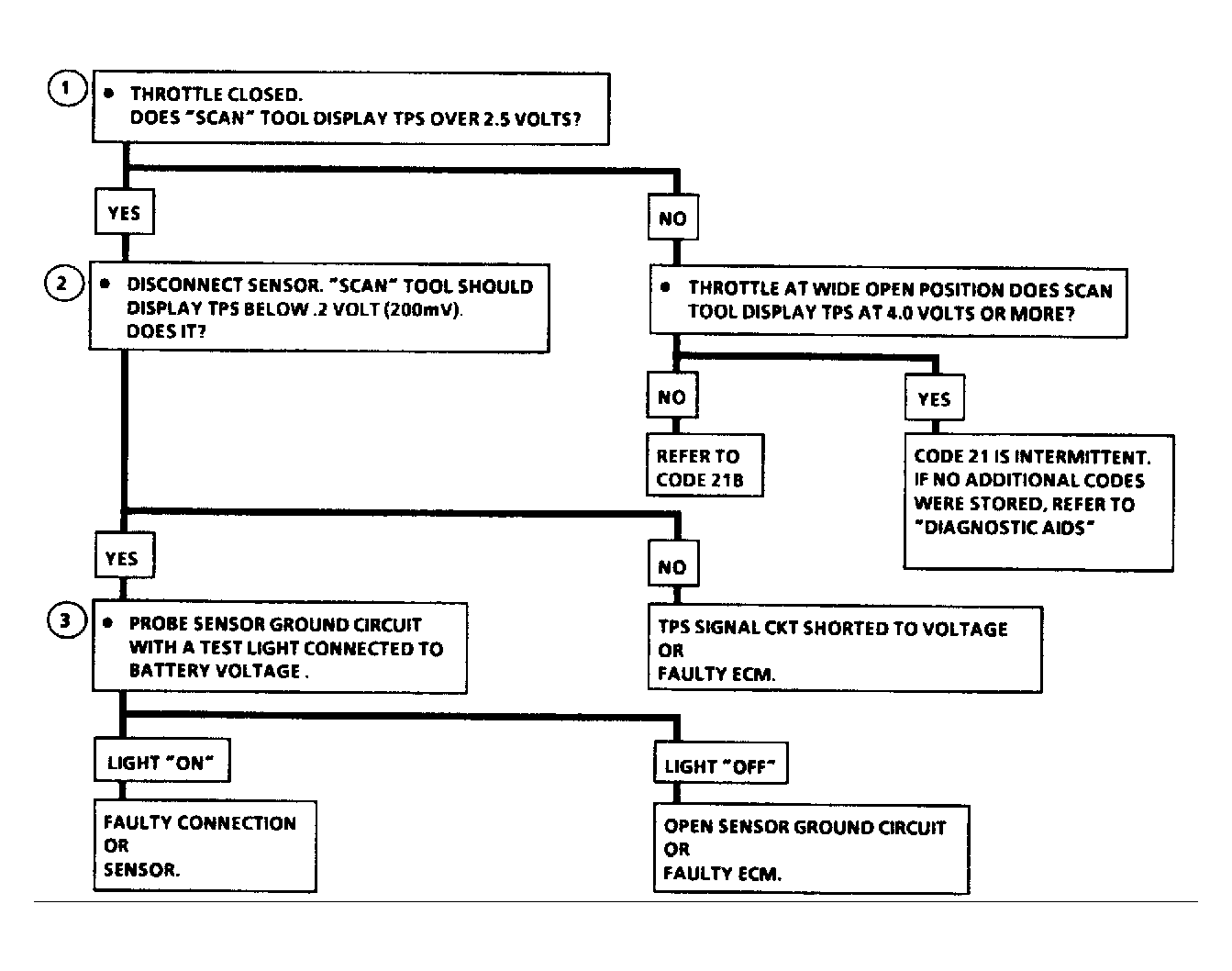

Fig 2: Code 21A Flow Chart
